2 Analog Video and 2 TTL over Fiber optic up 20Km, High Speed LC-LC Optical Transceiver Module TX 1310 & RX 1550nm,Custom made

Attention:

This model is specialized customized for my company's other client, We are unable to sell exact same model to other clients due to the agreement signed with the client, if other buyer request it, we can re-design a different model with same function, just a minor changed like  board size or board's layout configuration ,Buyer is supposed to pay for the sample fee. Contact us if needed.

Product Function

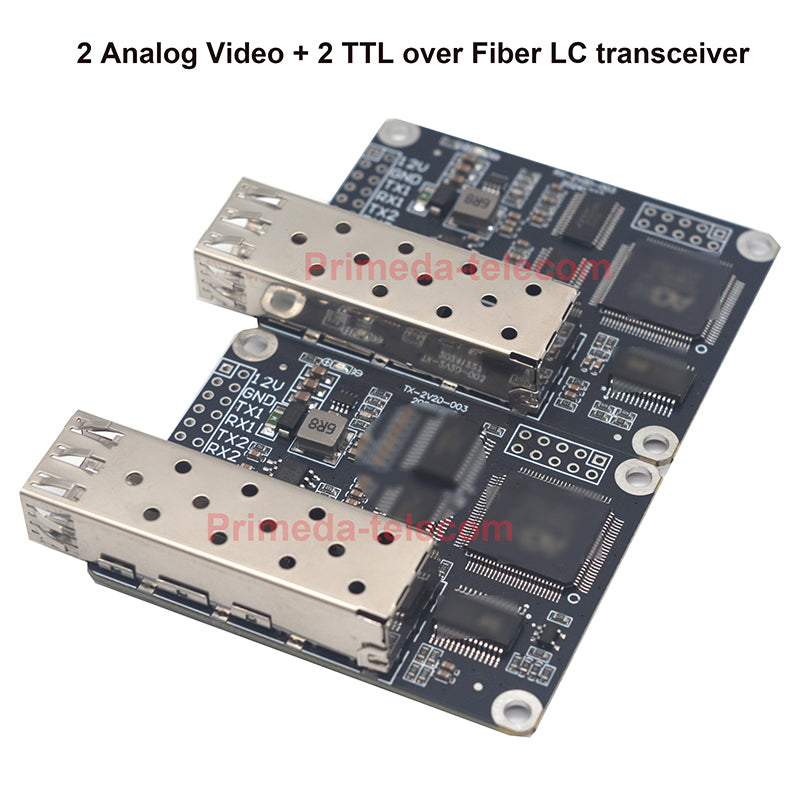

2x Analog Video

2x TTL (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)

LC fiber connector (Not include SFP module)

Singlemode single fiber up to 20km

Input voltage: 6-25v

Product description:

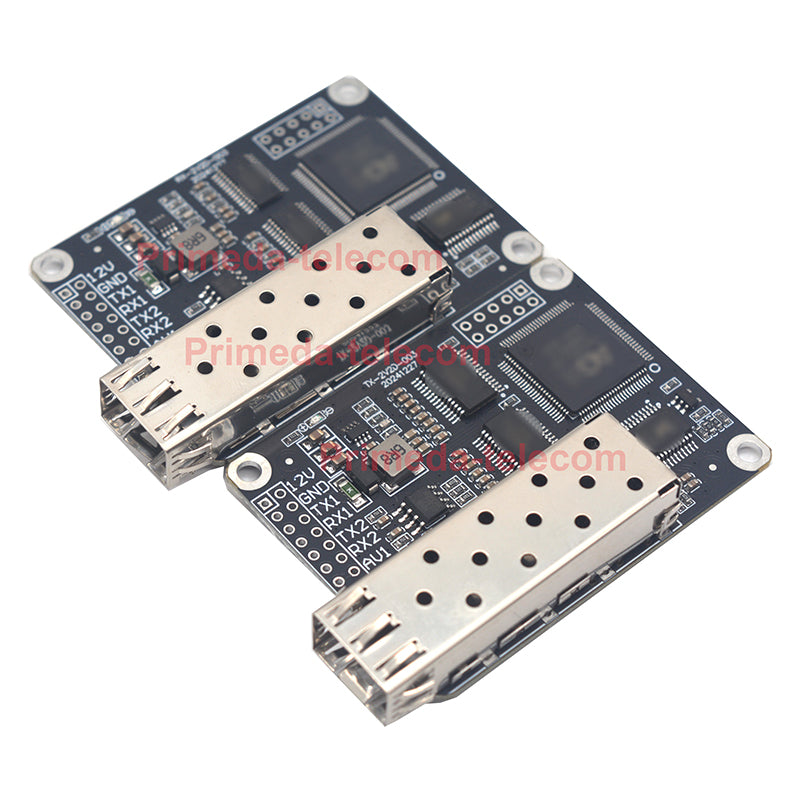

This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 2 analog video and 2 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference.

Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.

Feature:

1. This video over fiber system is used to send cvbs analog Video signals to remote display devices by using single LC-LC Fiber Optic cable.

2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber 0~300 meters

3. Support camera type: Cvbs analog camera.

4. Video format compatible for PAL, NTSC, SECAM

5. Mean Time between failures, More than 100,000 hours

6. Plug and play, no need to set up.

Custom made:

Video and TTL/RS232/RS485 is optional, 1080P/960P/Analog camera is optional. multichannel TTL/RS232/RS485 is optional. OEM factory, Fast production,Excellent Pricing, Contact us if needed.

Product Use:

The main purpose is to convert video signals into optical signals and transmit them through optical fibers. It can encode and convert the collected images or video signals into optoelectronic signals, transmit them to a remote decoder through optical fibers, and then present high-definition video images after decoding and processing

Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

Application environment

1.Broadcasting and television

2.Surveillance system

3.Distance education,support remote interactive teaching and real-time video communication

4.Industrial control and More

Optical index:

Optical Interface : LC

Optical wavelength 1310nm /1550nm

Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm

Applicable fiber optic: singlemode, and compatible with multimode fiber.

Transmission distance: single-mode fiber 0-20KM,

Video Index:

Video : 2 channel

Video Interface: BNC

Video Input / Output Impedance : 75ohm ( unbalanced ) ;

Video Bandwidth 100MHz;

Video format compatible PAL, NTSC, SECAM;

The sender input level: > 500mVp-p

The receiver output level: 1Vp-p

Input and output impedance: 75 ohm

The receiver rise and fall times:<0.8ns

The receiver maximum jitter:<0.2 UI

Two TTL speed:  Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more

Product weight: about 25g/pcs

Package Include:

1 x TX/1310nm  (Not include SFP module)

1 x RX/1550nm (Not include SFP module)
