Video over Fiber Transceiver transmitter and Receiver with 1 TTL 420Kb/s FC Singlemode up 20Km
Product Function1x Analog Video 1x TTL (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)FC fiber...
Vendor:
Primeda-telecom
SKU:
PMD-1V1D-1TTL-FC-20Km-PCBA-TX
Availability:
In Stock
Product Type:
Analog video fiber converter
- $25.00
$30.00- $25.00
- Unit price
- per
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Product Function
1x Analog Video
1x TTL (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)
FC fiber connector
Singlemode single fiber up to 20km
Input voltage: 6-25v
Custom made:
Video and TTL/RS232/RS485 is optional, 1080P/960P/Analog camera is optional. multichannel TTL/RS232/RS485 is optional. OEM factory, Fast production,Excellent Pricing, Contact us if needed.
Feature:

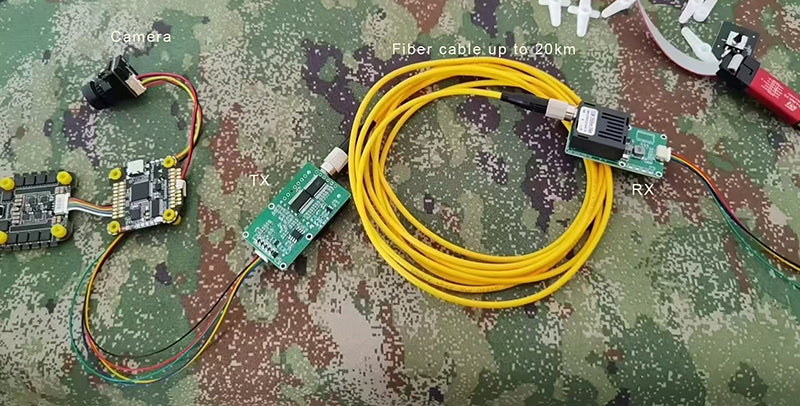

1. This video over fiber system is used to send cvbs analog Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.
2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber 0~300 meters
3. Support camera type: cvbs analog camera.
4. Video format compatible for PAL, NTSC, SECAM
5. Mean Time between failures, More than 100,000 hours
6. Plug and play, no need to set up.
Purpose:
The main purpose is to convert video signals into optical signals and transmit them through optical fibers. It can encode and convert the collected images or video signals into optoelectronic signals, transmit them to a remote decoder through optical fibers, and then present high-definition video images after decoding and processing
Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Application environment
1.Broadcasting and television
2.Surveillance system
3.Distance education,support remote interactive teaching and real-time video communication
4.Industrial control and More
Optical index:
Optical Interface : FC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatible with multimode fiber.
Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~200meters
Video Index:
Video : 1 channel
Video Interface: BNC
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Product weight: about 25g/pcs
Package Include:

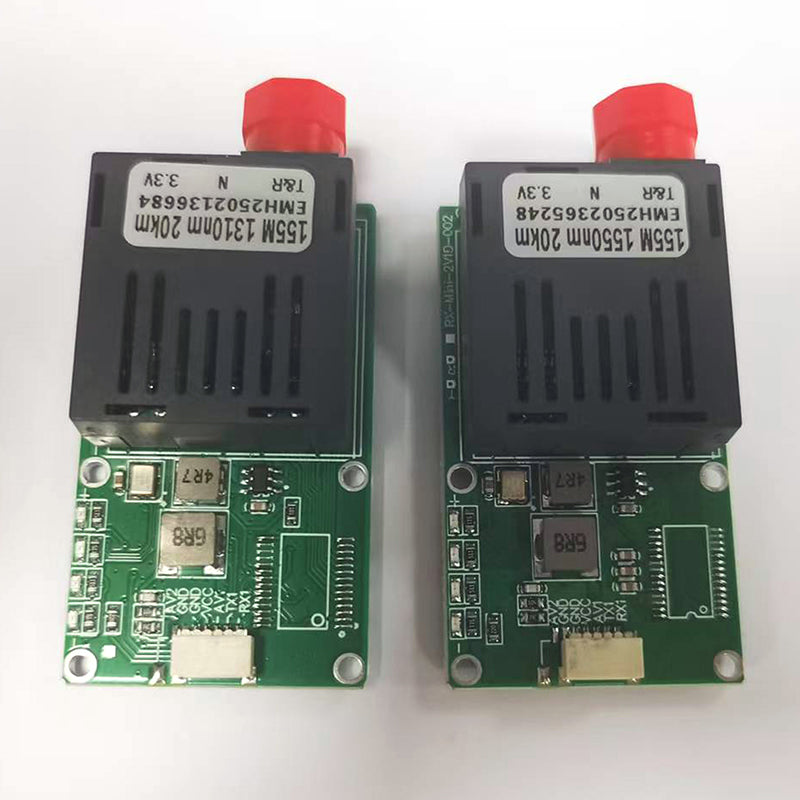

1 x TX PC Board
1 x RX PC Board
OEM Custom made, Large volume order ,Packing method,
