RS485 data and Ethernet over fiber converters -1 Bidirectional RS-485 Fiber extender , Fast Ethernet fiber converters, Singlemode up 20Km,Multimode 500m, A pair

Feature:

Extend your RS-485 data and Network: 1 bidirectional RS-485 + 1 Fast Ethernet (10/100 Mbit/s) port over same single mode or multimode fiber cable.

Universal for Both Fiber Types: same media converters can supports single-mode fiber for a long distance up to 20 km(12.4miles) and Multimode fiber for a distance up to 500m(0.31miles), wavelength 1310/1550 nm.

With APC(Automatic power control) circuit, Optical power outputted is very constant, large dynamic range,Video lossless transmission. Supports any RS-485 protocol, including RS-485 polling or Modbus protocol.

SC connector for fiber optical port, Green connector for RS485 ports and RJ-45 for Ethernet. LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.

Simple to Install, Plug and Play, Advanced self-adapting technology, no need for on-site electrical or optical adjustment during use.

Applicable environment

1. Security system
2. TV Medical
3. Video conference
4. Building Control System
5. Intelligent Traffic Monitoring System (ITS)
6. Remote multimedia teaching / campus monitoring
7. Long-distance radio and television transmission system

RS-485 Data:

1. Application: It can support multi-channel data, compatible with all control keyboards, matrix protocol, hard disk video PTZ, alarm composite data, industrial application transmission
2. Physical interface: industrial terminal block (standard).
3. Control equipment: PTZ decoder, control keyboard, matrix control data interface, high-speed ball, industrial equipment.
4. Data rate: DC-250Kbps.
5. Error rate: less than 10E-12.
6. Maximum distance: 1200 meters.
7. Fully transparent supports any RS-485 protocol, including RS-485 polling or Modbus protocol.
8. RS-485 network connection mode Support forward, reverse or bidirectional RS-485/RS422, support point-to-point, point-to-multipoint connection.

10/100Mbps Ethernet :

1. Used for: IP cameras with RJ45 interface. Network signal extend to far end.
2. Interface rate: 10/100Mbs adaptive.
3. Interface: RJ45 port.
4. Support protocol: IEEE 802.3U 100Base-TX, 10/100M Ethernet standard
5. Communication working mode: full duplex or half duplex

Environmental requirements

1. Ambient temperature: -20 ℃～+70 ℃
2. Storage temperature: -45 ℃～+95 ℃
3. Relative humidity: 0～95% (no condensation)
4. Power supply voltage: AC100-240V, DC5V2A.
5. MTBF: ≥ 105 hours
6. Power consumption: 2.5 w
7. Product size: 90*70*25mm

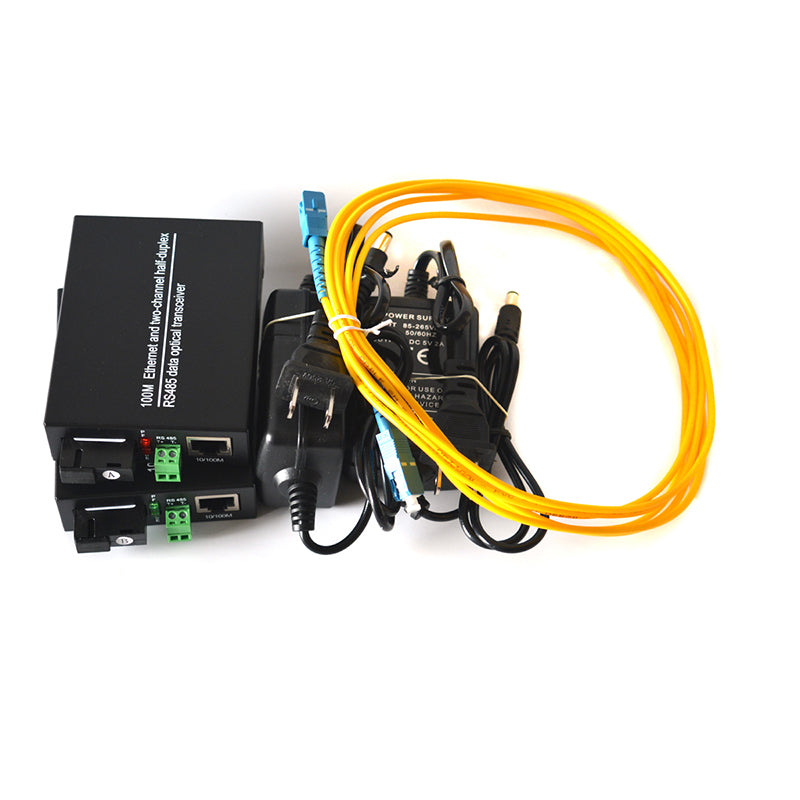

Package contents:

1. 1x RS485 data with ethernet Transmitter.
2. 1x RS485 data with ethernet Receiver.
3.  2 x power supply adapter
4. 1 x User manual
