RS232 data Extender over fiber optic, fiber RS232 extenders,Bidirectional 232 serial DB9 over fiber, Singlemode fiber up to 20Km,Multimode 500m, A pair

Description: the item is a universal Bidirectional RS-232 data over fiber optic extender. It is best choice...
Vendor: Primeda-telecom
SKU: PMD-RS232-SC
Availability: In Stock
Product Type: RS485/422/232 fiber converters
$42.00
$52.00
$42.00
Please hurry! Only 97 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
样式: with SC interface
Subtotal: $42.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

RS232 data Extender over fiber optic, fiber RS232 extenders,Bidirectional 232 serial DB9 over fiber, Singlemode fiber up to 20Km,Multimode 500m, A pair

RS232 data Extender over fiber optic, fiber RS232 extenders,Bidirectional 232 serial DB9 over fiber, Singlemode fiber up to 20Km,Multimode 500m, A pair

$52.00 $42.00

RS232 data Extender over fiber optic, fiber RS232 extenders,Bidirectional 232 serial DB9 over fiber, Singlemode fiber up to 20Km,Multimode 500m, A pair

$52.00 $42.00
样式: with SC interface

Description:

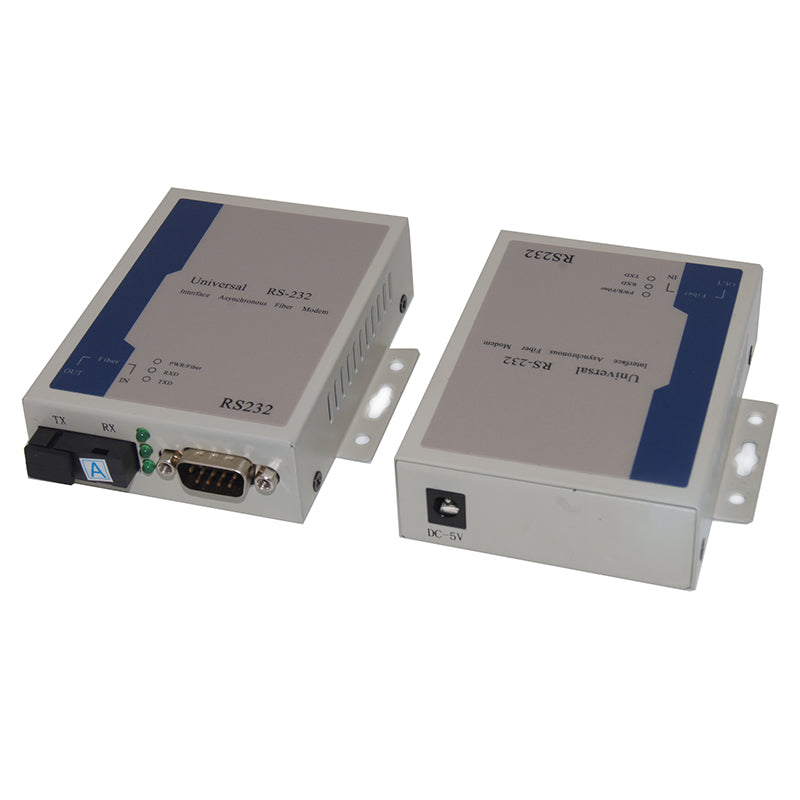

the item is a universal Bidirectional RS-232 data over fiber optic extender. It is best choice for connecting a remote terminal unit (RTU) to a host (HOST) or a distributed data acquisition system (SCADA) controller. The product uses optical fiber as the transmission medium, improve the transmission performance of the system, effectively avoid the harsh environment of lightning, surge and electromagnetic interference on the threat of communications equipment.


Features:

  1. Zero delay automatically forwards
  2. Asynchronous transmission, point to point use, RS232 data interface and fiber conversion
  3. Automatically detect the serial port rate, identify and control the direction of data transmission
  4. Communication rate: 120Kbps max.
  5. Simplex SC optical port (FC is optional)
  6. Fiber wavelength: 1310nm/1550nm.
  7. Anti surge protection 1500W, 15KV electrostatic protection
  8. Working distance: single-mode 20 km, Multi-mode 0~500m.
  9. RS232 data transmission distance: 15 meters

Environmental requirements

Ambient temperature: -25 ℃~+70 ℃

Storage temperature: -45 ℃~+95 ℃

Relative humidity: 0~95% (no condensation)


Other specification:

Power supply: AC100~240V,DC5V (US/EU/UK/AU standard plug is optional)

Power consumption: 2.5 w

Size:103x70x27mm(LxWxH)

Weight: 0.8Kg/pair.



Package contents:

1x RS232 data Transmitter.

1x RS232 data Receiver.

2 x power supply adapter

1 x User manual
