Multifunction 3G-SDI RS422 RJ45 Ethernet over Fiber Optic Media Converter, Uncompressed HD Video Audio extenders to fiber optic ,Singlemode fiber up to 12.4miles, Multimode up to 500m A set
Function: 1 x 3G-SDI with loop out. 1 x 10/100Mbps Ethernet. 1 x 3.5mm Audio (Bi-directional). 2...
Vendor:
Primeda-telecom
SKU:
PMD-3GSDI-A-E-RS422
Availability:
In Stock
Product Type:
SDI fiber converters
- $399.00
$468.00- $399.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days

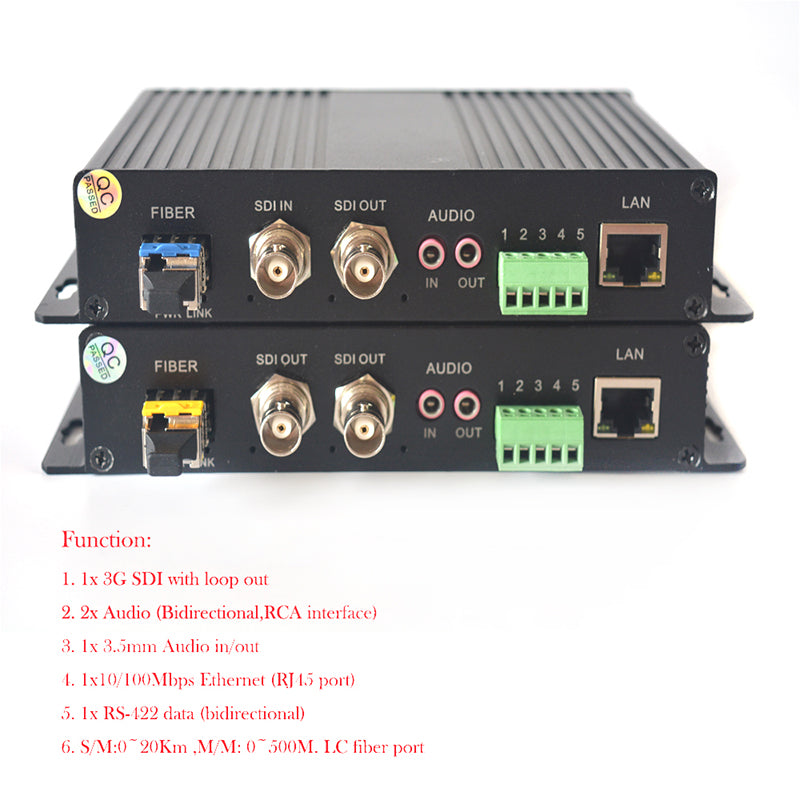

Function:
- 1 x 3G-SDI with loop out.
- 1 x 10/100Mbps Ethernet.
- 1 x 3.5mm Audio (Bi-directional).
- 2 x Audio (Bi-directional, RCA connector).
- 1 x RS-422 data (Bi-direction).
- LC fiber connector, Singlemode fiber 0-20Km.
Feature
- It can extend one 3G-SDI or HD-SDI Video/Audio signal over a fiber optic to far end, long transmission distance, Single-mode fiber can up to 12.4 Miles (20Km). with two 3.125G SFP optical module, LC simplex port. HD-SDI signal is with embedded audio signal.
- Support SMPTE424M(3G-SDI), SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@60/30/25, 1080i@60/50 59.94 and more.
- With clock recovery, clock shaping, this function can make sure the video image no flicker, high quality design.
- Support Video loop out function and Bi-directional RS422 data, Supports embedded digital audio stream and 10/100Mps ethernet (RJ45 port) which can extend your networking signal through a fiber optic to far end up to 12.4miles, also can use for IP camera with RJ45 port and More.
- Single-mode and multi-mode compatible, single-mode transmission distance up to 12.4Miles (20Km), multi-mode transmission distance up to 500M.
- Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution
- Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, and it will work immediately.
Specification:
Working voltage:AC100V~240V,DC5V/2A(US/EU/UK/AU plug adapter optional)
Outer box size: 172x112x32mm (LxWxH)
Weight :1.2Kg per set.
Package: carton box
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
1 x 3M LC-LC SM fiber patch cord
2 x External Power supply adapters
1x User Manual
Custom made small order is acceptable ,contact us if need.
