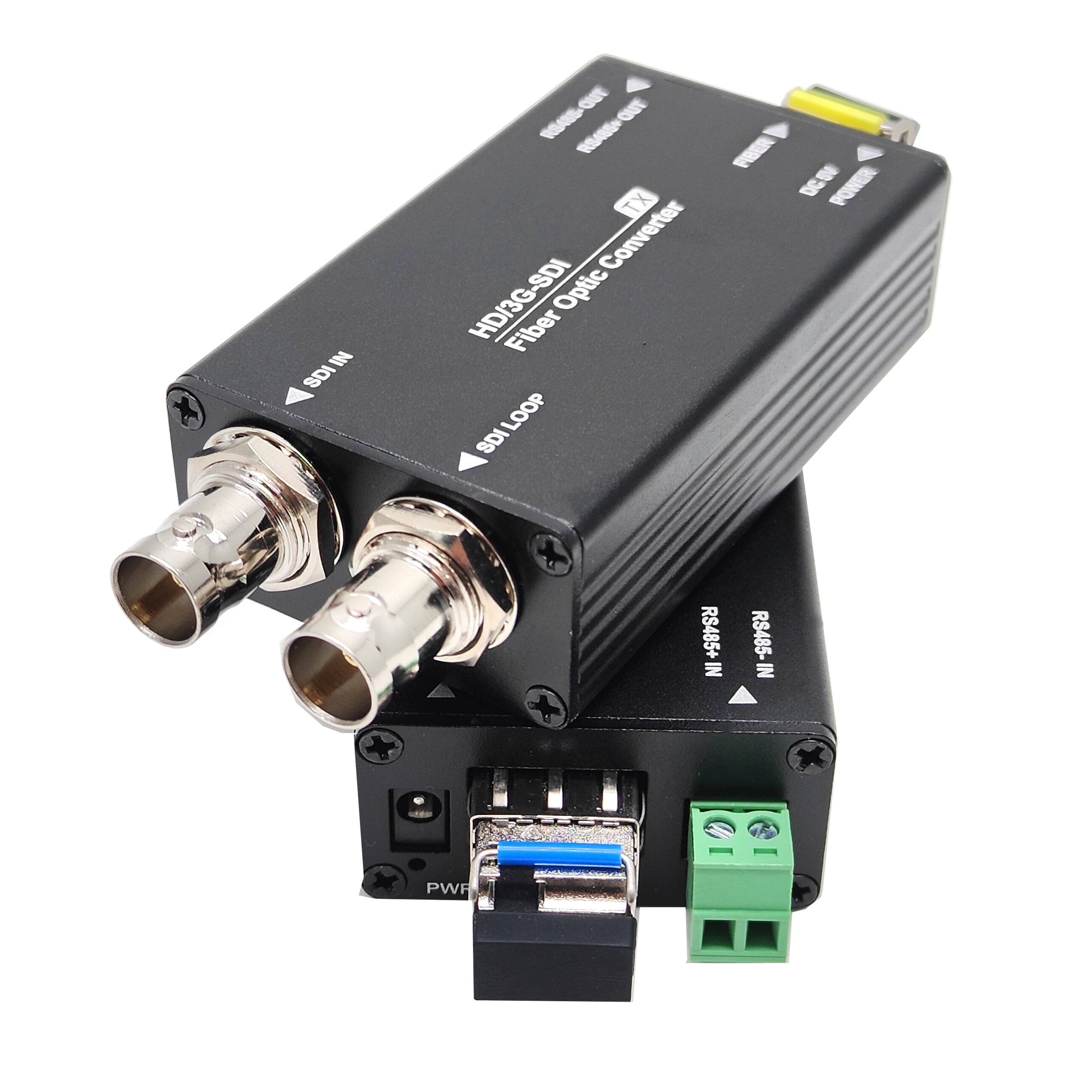

Mini 3G-SDI Video Over Fiber Optic Converters,LC Singlemode up 20Km (12.4mi),Multimode up to 500m .with 2 SFP Optical Module,Compatible with 3G-SDI,HD-SDI Camera
Feature: Extends uncompressed 3G-SDI, HD-SDI or SD-SDI HD video over a single fiber optic. Suitable for universal...
- $179.00
$249.00- $179.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Feature:
- Extends uncompressed 3G-SDI, HD-SDI or SD-SDI HD video over a single fiber optic. Suitable for universal Single-mode and multi-mode fiber cable, single-mode up to 20KM, Multi-mode up to 500M. with RS-485 data (reverse direction) which can control PTZ.
- Support video resolution 1920x1080@60Hz max, backward compatible.1080P@ 30,25,24Hz and 1080I@60,50Hz. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant.
- Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz, backward compatible. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
- Broadcast High grade & Compact design. with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
- Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
Specifications:
- Optical wavelength:1310nm-1550nm
- Fiber Type: Single mode, Single fiber(default)
- Working distance 0~20km
- Fiber connector: LC.
SDI Video:
- Physical Interface: BNC
- Resolution: up to 1920 x 1080 @ 60Hz
- Video Input and Output Impedance: 75Ω (unbalanced)
- Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
- Video Bits Rate: Max 2.97Gb/s
- Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Electrical & Mechanical:
- Input Power Requirements: DC 5V
- Power consumption ＜1.5W
- Power physical interface micro-USB
- Dimensions:73*42*21.9mm (LxWxH).
Data
- Physical Interface: standard industry block terminal
- Interface signal: RS485 reverse direction, PTZ control
- Baud Rate:0-400Kbps
- BER <10 -9
- Operation Mode: Full duplex / half duplex
Environmental
- Operating temperature: -20°C ~ +75°C
- Storage temperature: -40°C ~ +85°C
- Working humidity: 0% ~ 95% (non-condensing)
- MTBF:>100,000 hours
Package Include:
- 1 x 3G-SDI Transmitter
- 1 x 3G-SDI Receiver
- 2x Power supply adapter with Micro-USB connector
- 1 x 3M LC-LC S/M fiber patch cord
- 1x User Manual
