Micro SDI to HDMI Converter Adapter, Support 3G HD SDI, 1PCS

Description: The SDI to HDMI converter allows HD-SDI and 3G-SDI and SD-SDI signals to be shown on...
Vendor: Primeda-telecom
SKU: PMD-SDI/HDMI-001
Availability: In Stock
Product Type: SDI fiber converters
$36.00
$49.00
$36.00
Please hurry! Only 95 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $36.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

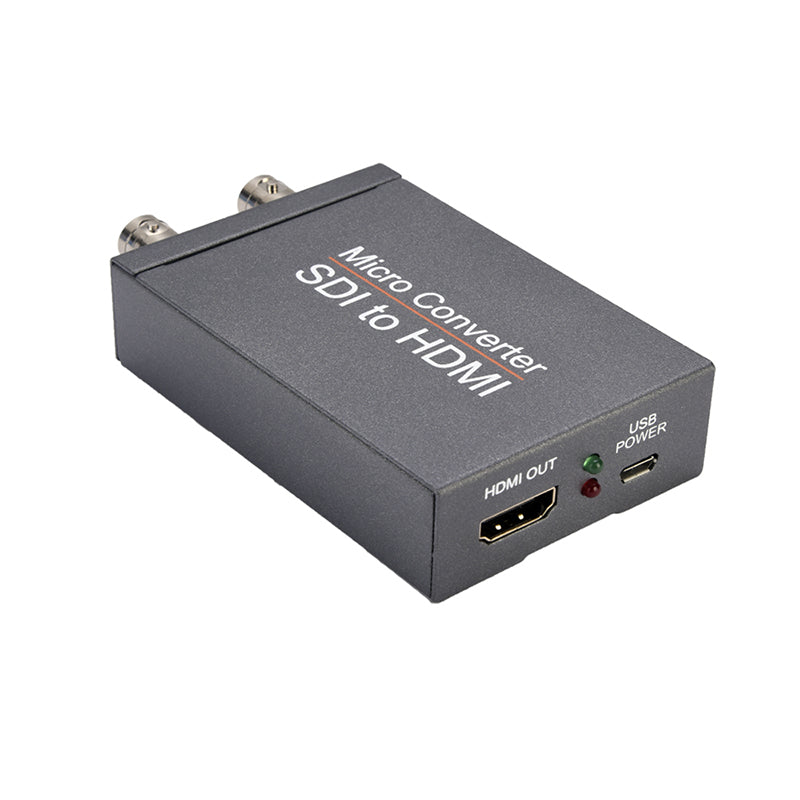

Micro SDI to HDMI Converter Adapter, Support 3G HD SDI, 1PCS

Micro SDI to HDMI Converter Adapter, Support 3G HD SDI, 1PCS

$49.00 $36.00

Micro SDI to HDMI Converter Adapter, Support 3G HD SDI, 1PCS

$49.00 $36.00

Description:

The SDI to HDMI converter allows HD-SDI and 3G-SDI and SD-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.  SDI and HDMI signal output Synchronously



Features

1.Operation at 2.970Gbit/s, 1.485Gbit/s

2.Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

3.Connect with other units to extend your signal over long distances

4.Power and video indicators.

5. Industrial metal case, easy to install.

6.MTBF: more than 50,000 hours

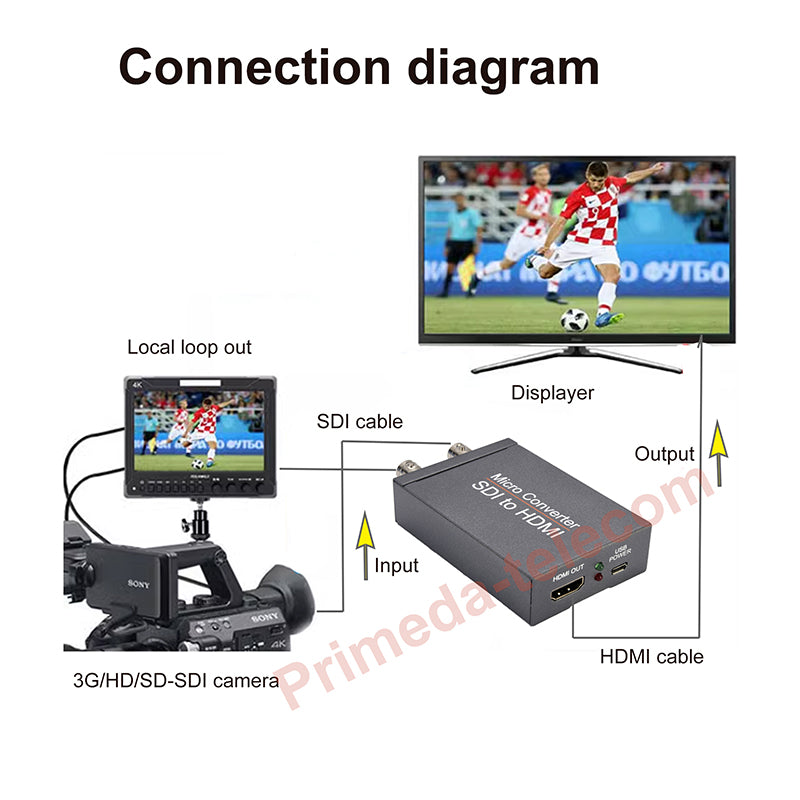

Application Example



Specificaitons

Input Port                  1 x BNC (HD-SDI/3G-SDI)

Output Port                 1 x HDMI

SDI Transmission Rates      2.970 Gbit/s

In/Output Resolution        720p\1080i\1080p

Power Supply DC 5V

ESD Protection Human body model    ±8kV (air-gap discharge) ,

±4kV (contact discharge)

Dimension                   97mm x 55mm x 23mm

Weight   130g

Operating Temperature         0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature         -20°C ~ 60°C / -4°F ~ 140°F

elative Humidity              20 ~ 90% RH (Non-condensing)

Power Consumption (Max)   5W

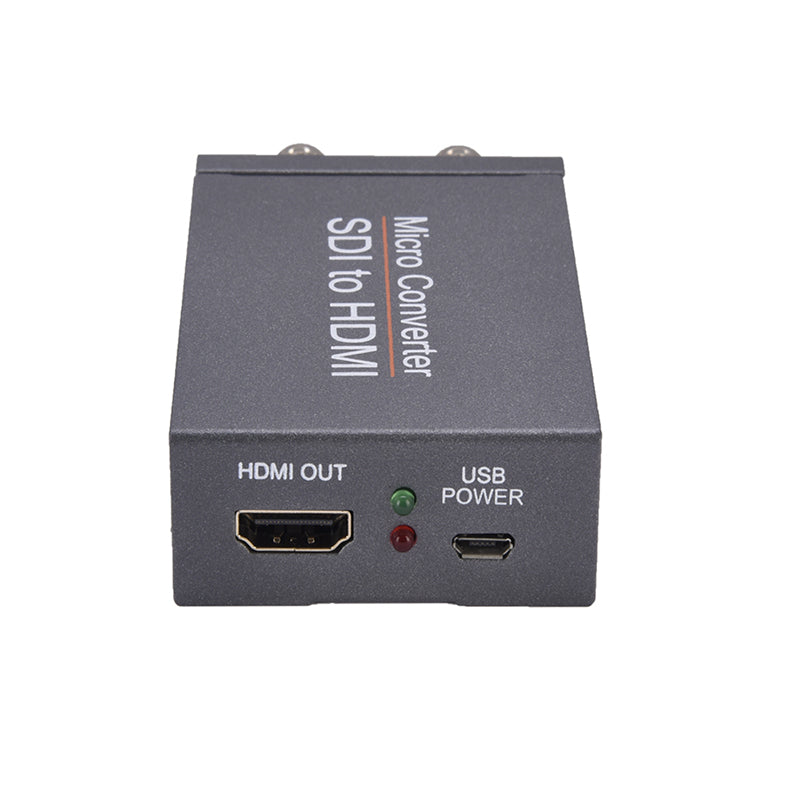

Operation controls and Fuctions

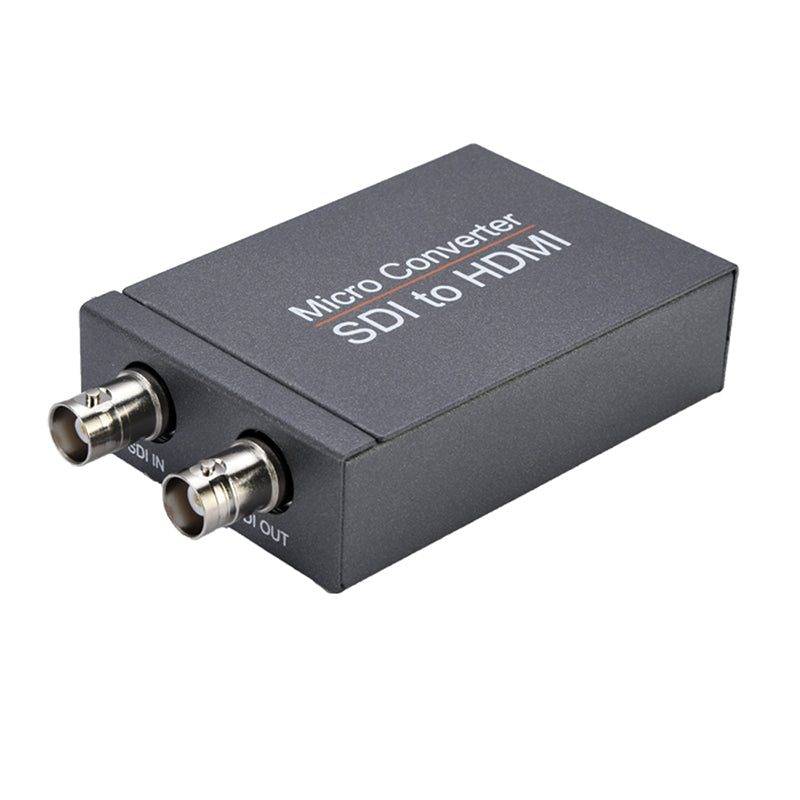

1.SDI IN: This slot is where you connect the SDI source output .

2.SDI OUT: This slot is where you connect the SDI display .

3.HDMI OUT: This slot is where you connect the HDMI display with HDMI cable.

4.RED LED: POWER Light.

5.GREEN LED: SDI lock light.

6.USB POWER: Plug usb power supply cable into the unit.

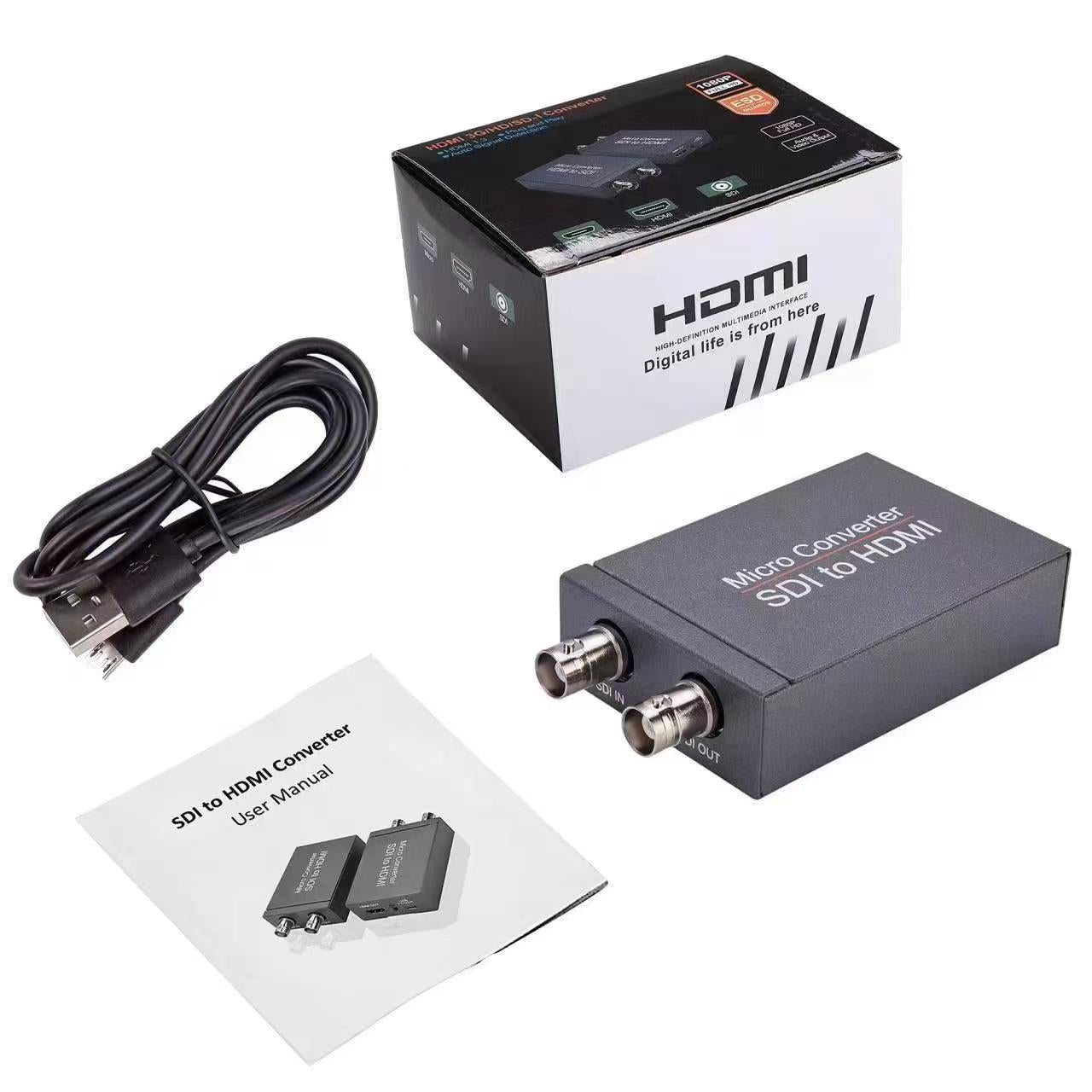

Package include

1.1x Mirco SDI to HDMI Converter

2.1x USB Power cable

3. Operation Manual
