High quality Ribbon Mass Fiber Optic Fusion Splice Protection Sleeves 40mm,D-shaped ceramic strengthen pin, Accommodate up to 12 Fibers -100pcs

Feature   This ribbon mass fiber sleeves is applied in bar fiber-optic cables of the RIBBON type,...
Vendor: Primeda-telecom
SKU: PZ-12d-N
Availability: In Stock
Product Type: Fiber splice sleeves
$19.90
$23.90
$19.90
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $19.90
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

High quality Ribbon Mass Fiber Optic Fusion Splice Protection Sleeves 40mm,D-shaped ceramic strengthen pin, Accommodate up to 12 Fibers -100pcs

High quality Ribbon Mass Fiber Optic Fusion Splice Protection Sleeves 40mm,D-shaped ceramic strengthen pin, Accommodate up to 12 Fibers -100pcs

$23.90 $19.90

High quality Ribbon Mass Fiber Optic Fusion Splice Protection Sleeves 40mm,D-shaped ceramic strengthen pin, Accommodate up to 12 Fibers -100pcs

$23.90 $19.90

Feature

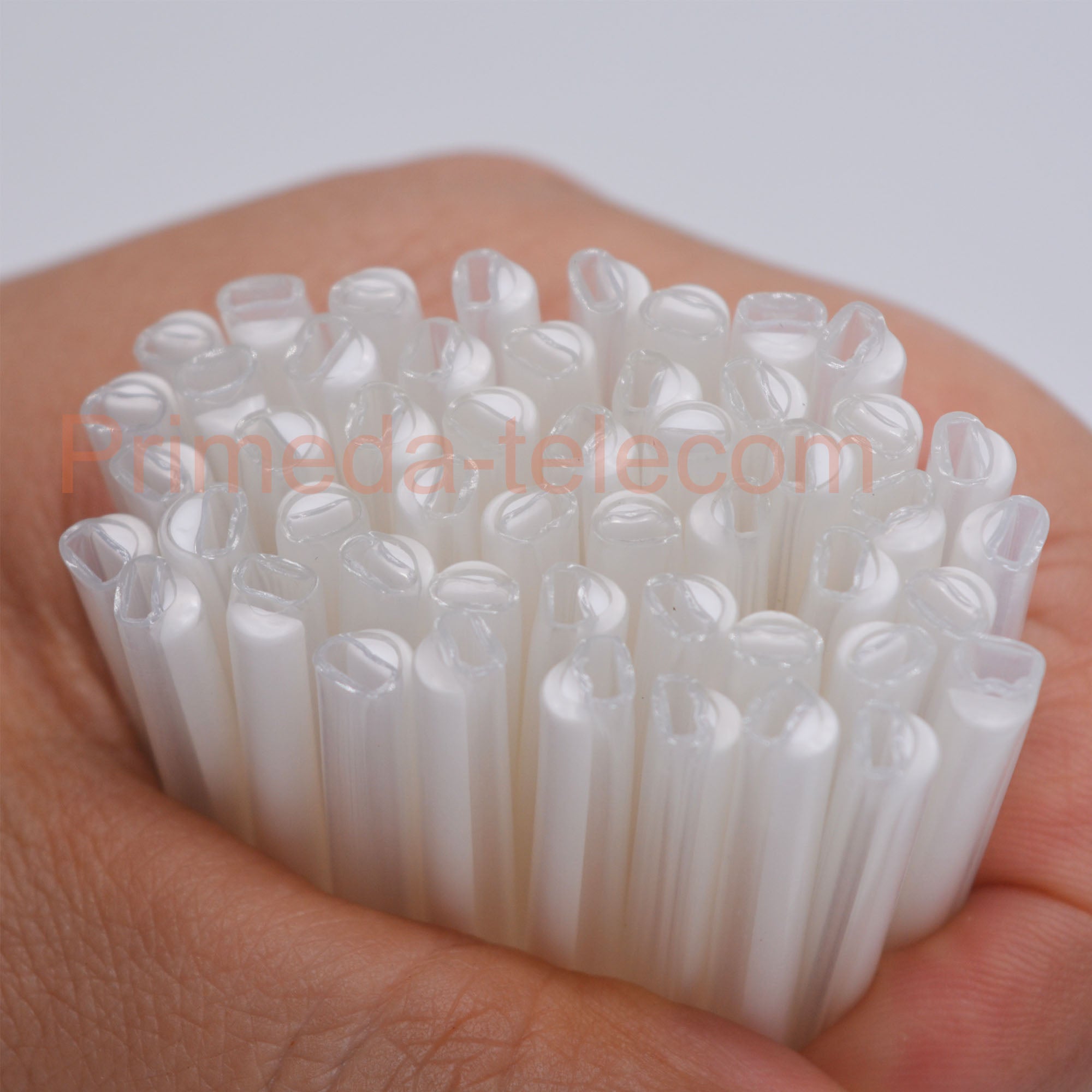

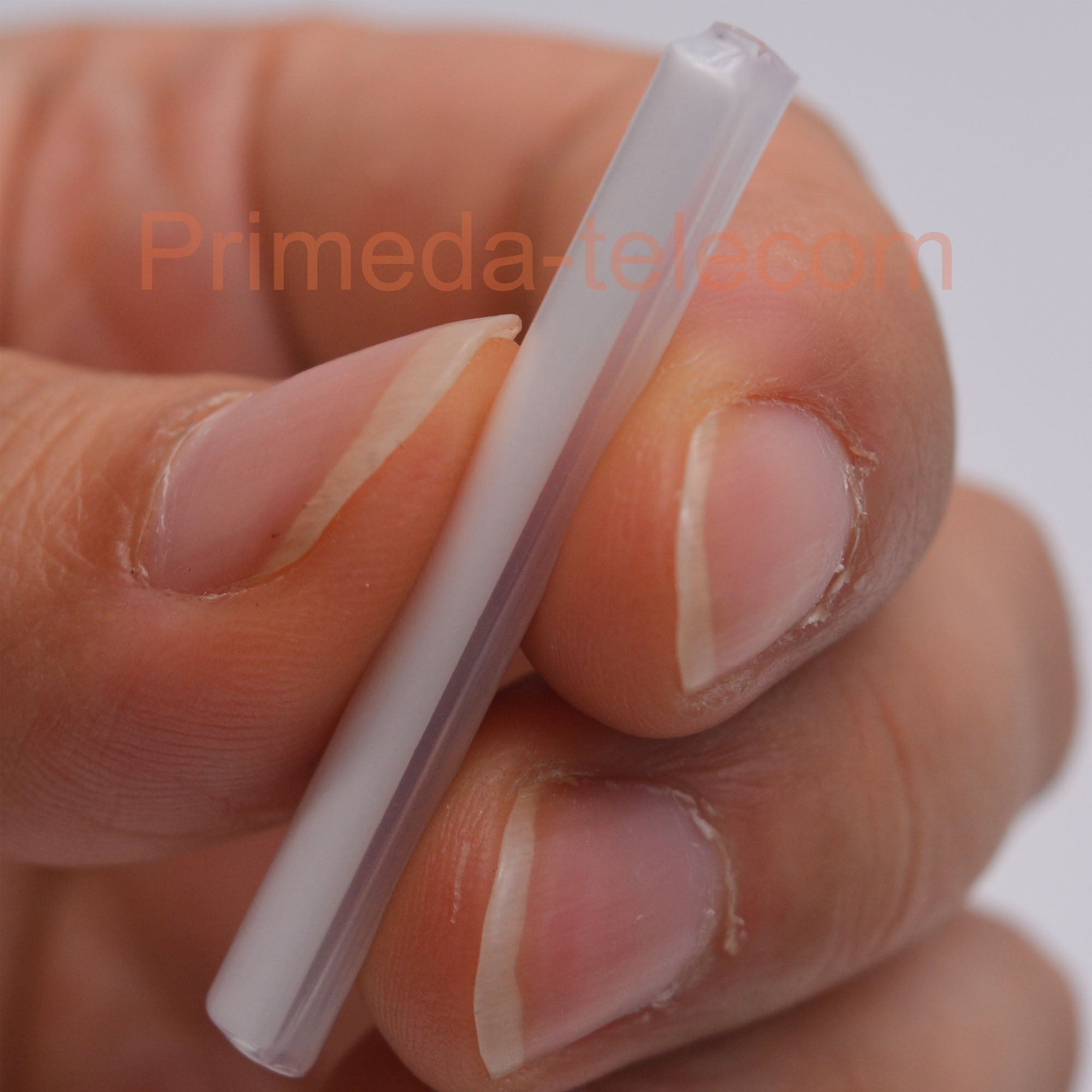

This ribbon mass fiber sleeves is applied in bar fiber-optic cables of the RIBBON type, It can accommodate up to 12 fibers in one sleeve and quickness of assembly (120s). Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces.

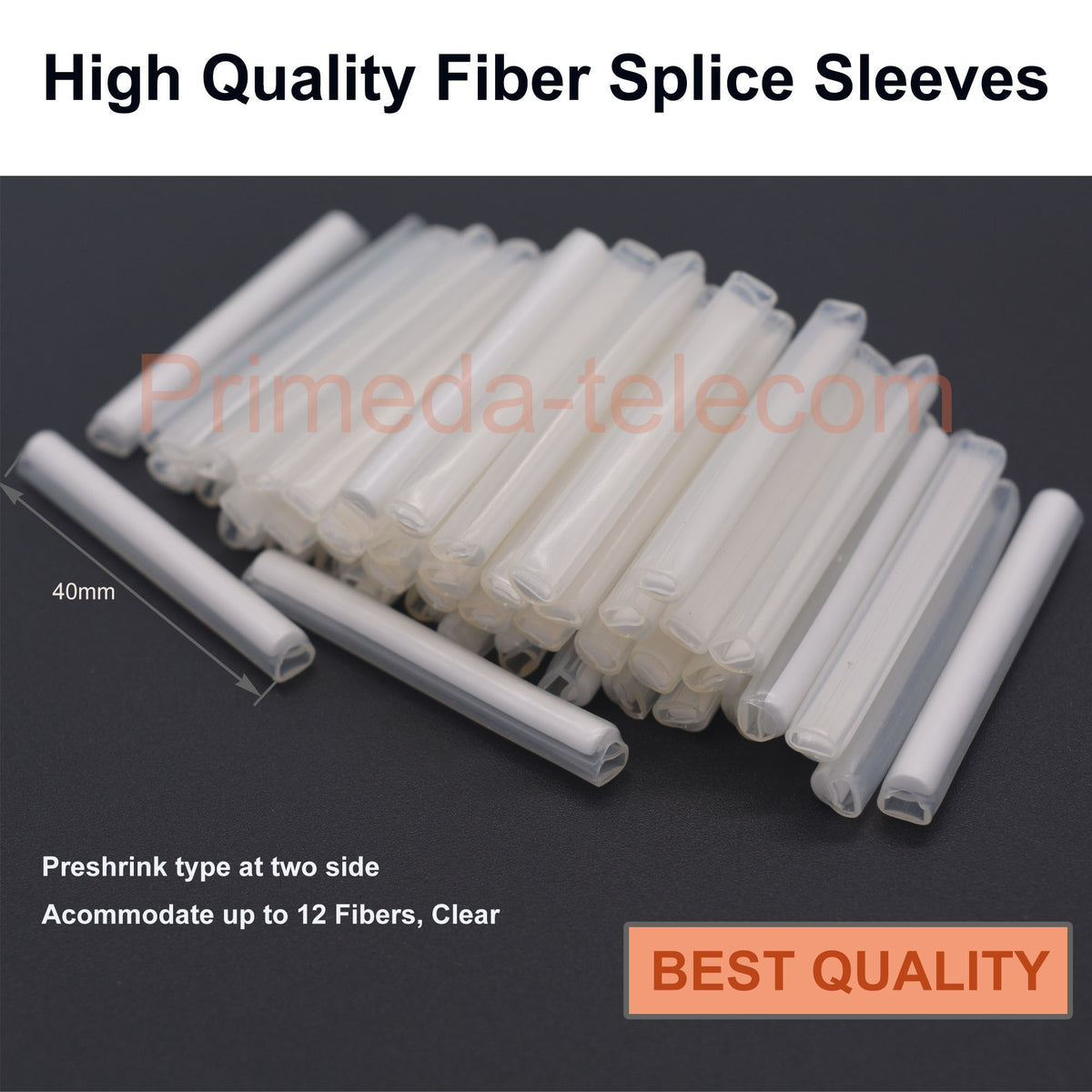

High quality ,High end ,Preshrunk design at two side, Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out.

Simple operation, reduce the risk of fiber damage during installation.

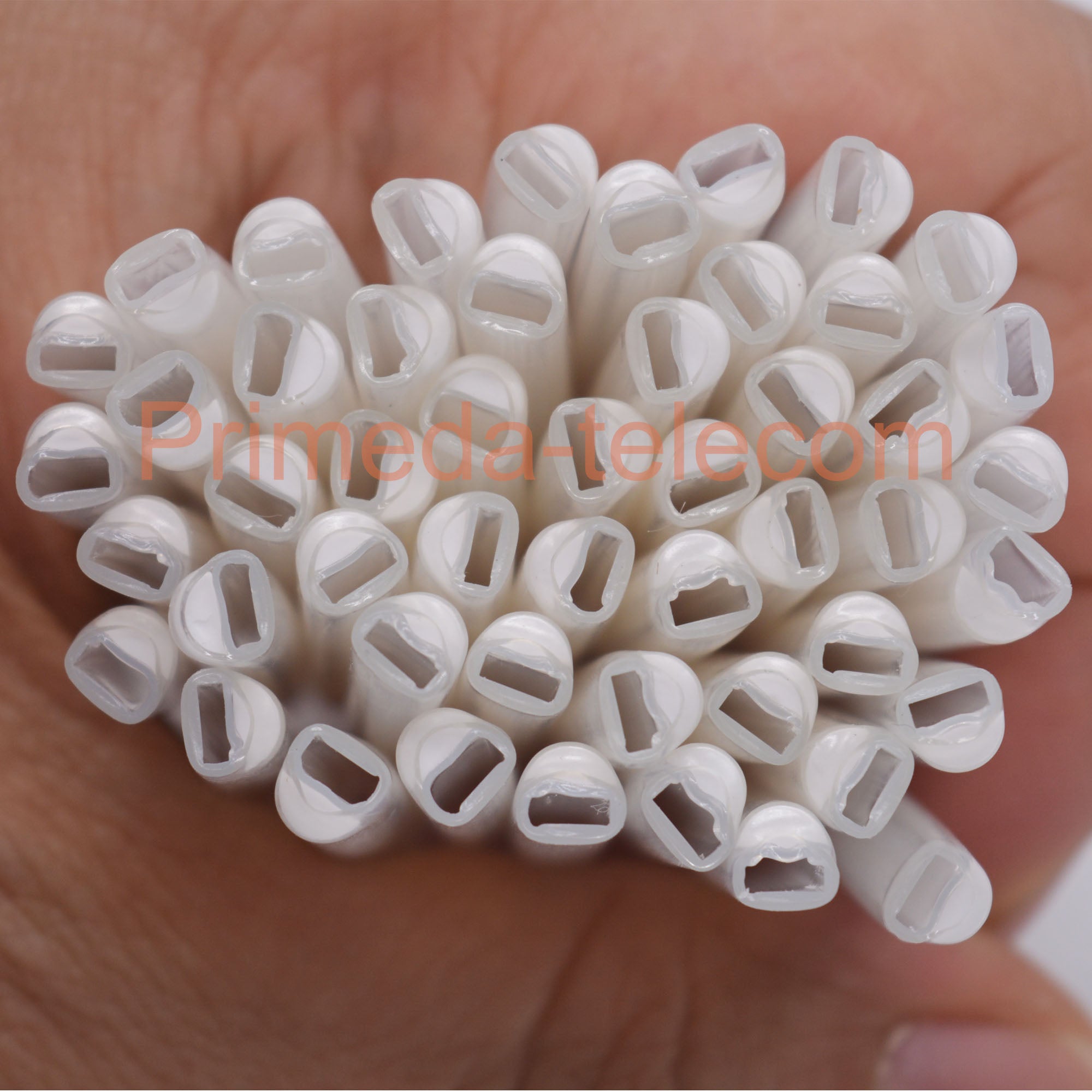

Special design by the cross linking polyolefin melt pipe and composed of one D-shaped ceramic strengthening element. Protect components, no influence of fiber optical properties.

They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.



Product properties

Pin diameter (D type): 1.9x3.9 (up to 12 fibers)mm ceramic

Operating fully recovery temperature:-45 to 100 degree

Minimum installation temperature: 120 °C

Max installation time: 90 seconds

Standard color: Clear

Compliant norms: UL224, MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006 RoHS compliant

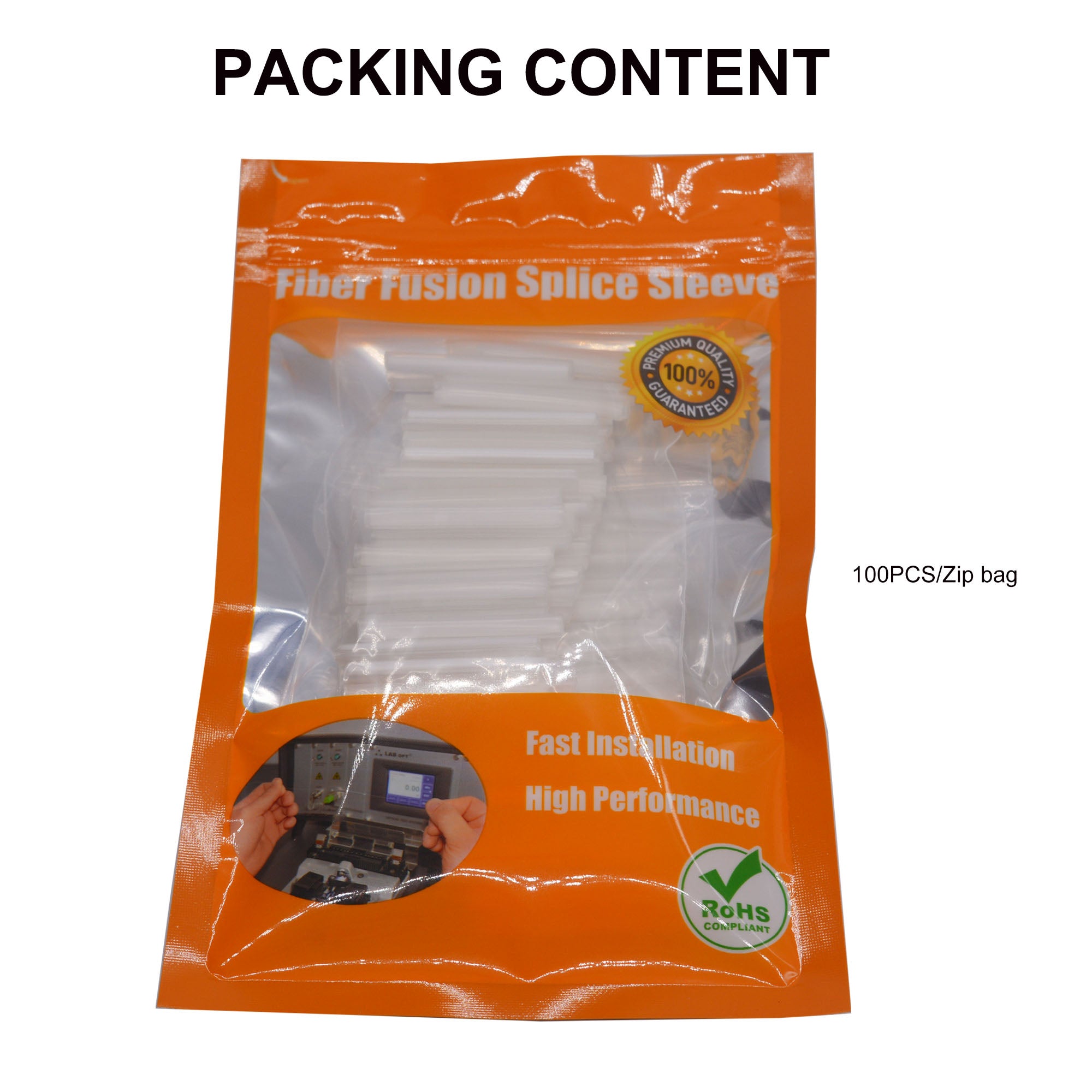

Packing: 50pcs packed to one zip-bag



Package include: 100pcs Ribbon mass fiber splice sleeves
