BIDI HD-SDI fiber converters -Bidirectional Video Audio Ethernet RS485 data over Fiber Optic extenders Uncompressed- Singlemode 20Km Multimode 500m,SFP transceiver include,A pair
Function: 1 x Bi-directional HD-SDI (two directions) 1 x 10/100Mbps Ethernet. 1 x 3.5mm Audio (Bi-directional). 2...
Vendor:
Primeda-telecom
SKU:
PMD-HD-1BSDI-D-A-E
Availability:
In Stock
Product Type:
SDI fiber converters
- $429.00
$499.00- $429.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days

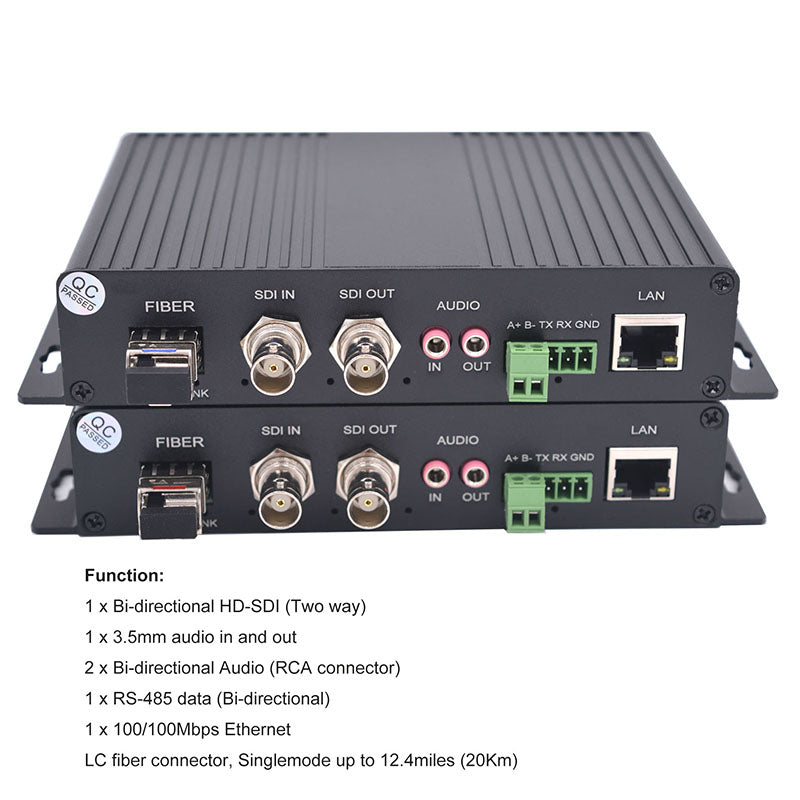

Function:
- 1 x Bi-directional HD-SDI (two directions)
- 1 x 10/100Mbps Ethernet.
- 1 x 3.5mm Audio (Bi-directional).
- 2 x Audio (Bi-directional, RCA connector).
- 1 x RS-485 data (Bi-direction).
- LC fiber connector, Singlemode fiber 0-20Km.
Feature
It can extend a channel of Bi-directional HD-SDI Video/Audio signal over a fiber optic to far end, One direction from TX to RX, other direction is from RX to TX. Single-mode fiber can up to 12.4 Miles (20Km). with 2x SFP optical module, LC simplex port. HD-SDI signal is with embedded audio signal.
Support SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@30/25, 1080i@60/50 59.94 and more.
With clock recovery, clock shaping, this function can make sure the video image no flicker, high quality design.
Support Video loop out function and one reverse RS485 data, Supports embedded digital audio stream. the 10/100Mps ethernet (RJ45 port) can extend your networking signal through a fiber optic to far end up to 12.4miles, also can use for IP camera with RJ45 port and More.
Single-mode and multi-mode compatible, single-mode transmission distance up to 12.4Miles (20Km), multi-mode transmission distance up to 500M.
Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution
Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, and it will work immediately.
Specification:
- Working voltage:AC100V~240V,DC5V/2A(US/EU/UK/AU plug adapter optional)
- Outer box size: 172x112x32mm (LxWxH)
- Weight :1.2Kg per set.
- Package: carton box
Package Include:
1 x HD-SDI Transmitter
1 x HD-SDI Receiver
1 x 3M LC-LC SM fiber patch cord
2 x External Power supply adapters
1x User Manual
