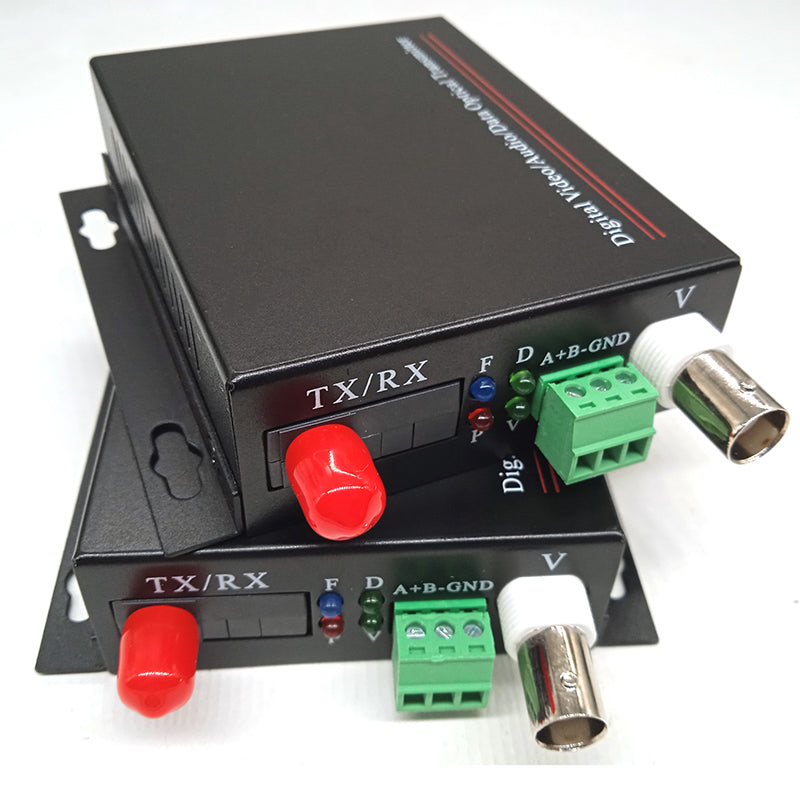

Analog Video and 3.3V TTL over fiber optic converter FC Singlemode up 20Km Transmitter and Receiver A pair
Product function:1 x Analog video(forward direction, Camera at TX side） 1 x 3.3V TTL(Reverse direction, RX send TTL...
Vendor:
Primeda-telecom
SKU:
PMD-1V1D-TTL-3.3V
Availability:
In Stock
Product Type:
Analog video fiber converter
- $78.00
$88.00- $78.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Product function:
1 x Analog video(forward direction, Camera at TX side）
1 x 3.3V TTL(Reverse direction, RX send TTL command, TX receive TTL command）
FC fiber connector, Single-mode single fiber up to 20Km
AC100-240V,DC5V2A
Custom made is acceptable, No minimum Purhcase.
Feature:
1. the video over fiber extender can extend 1 channel of analog video and 3.3V TTL over fiber optic cable to remote display.
2. Long transmission distance up to 20Km by single-mode fiber, it is compatible with multimode fiber up to 500meters. Optical interface: ST(SC/FC is optional). Multimode version up to 1.5Km is optional. if need, Contact us before order.
3. Applicable for Analog cameras only, Compatible for PAL, NTSC, SECAM Video format automatically. NOTE: DON’T SUPPORT 1080P/960P/720P TVI/CVI/AHD HD Cameras and SDI cameras, please read it carefully before order.
4. Suitable fiber type: universal Single-mode and multimode fiber.
5. LED indicators can dynamic feedback link connection state and fault detection to easily monitor network status.
6. Plug and Play, No need to set up.
Video:
1. Video format compatible with PAL, NTSC, SECAM.
2. Video Input / Output Impedance: 75ohm (unbalanced);
3. Video Bandwidth :5Hz-10MHz;
4. Video voltage 1VP-P;
5. Video SNR ≥ 70dB;
6. Differential gain ≤ 0.7%;
7. Differential phase ≤ 0.7 °;
8. 8- bit linear PCM coding
9. Video Interface: BNC;
TTL (Contact closure index):
TTL direction: Reverse direction
TTL level: 3.3V
Sampling speed: 1.56MHz
Delay:<200ns
Interface type: Industrial terminal
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Working voltage: AC100-240V, DC5V2A, with US standard plug.
3. Operating temperature: -40 +70 degree.
4. Operating humidity :0 -95 % non-condensing.

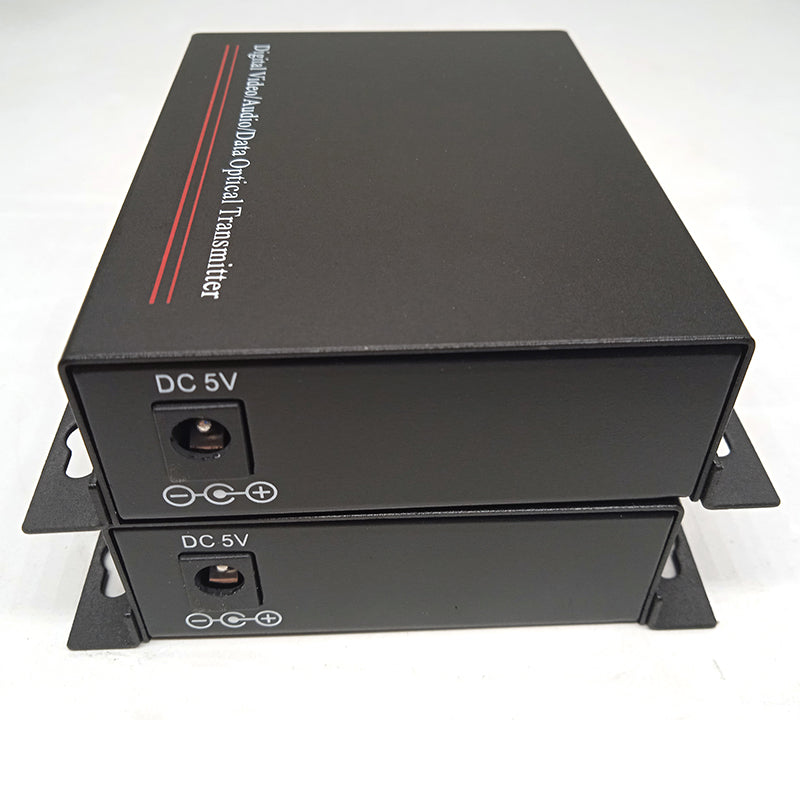

Power supply:
AC100-240V,DC5V2A.(US/EU/UK/AU Standard is optional)
Package:
1. 1x 1 channel video transmitter
2. 1x 1 channel video receiver
3. 2x External power adapters
4. User manual
