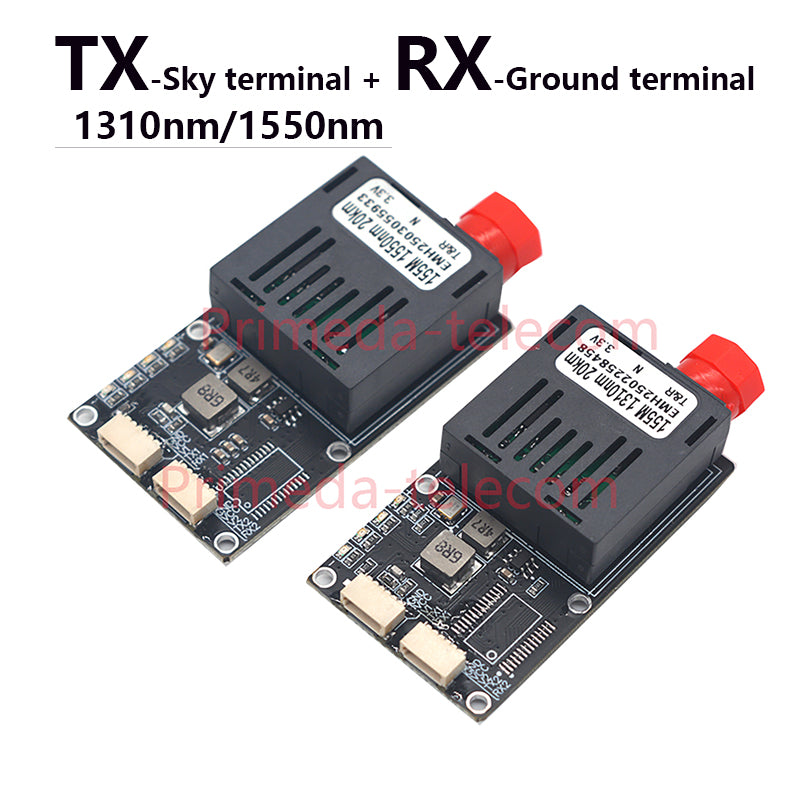

Analog Video/2 RS232 over Fiber Transceiver transmitter and Receiver FC Singlemode up 20Km A pair Custom made

Custom made: Video and TTL/RS232/RS485 is optional, 1080P/960P/Analog camera is optional. multichannel TTL/RS232/RS485 is optional. OEM factory,...
Vendor: Primeda-telecom
SKU: PMD-1V-2xRS232-FC-20Km-PCBA-TX
Availability: In Stock
Product Type: Analog video fiber converter
$25.00
$30.00
$25.00
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S

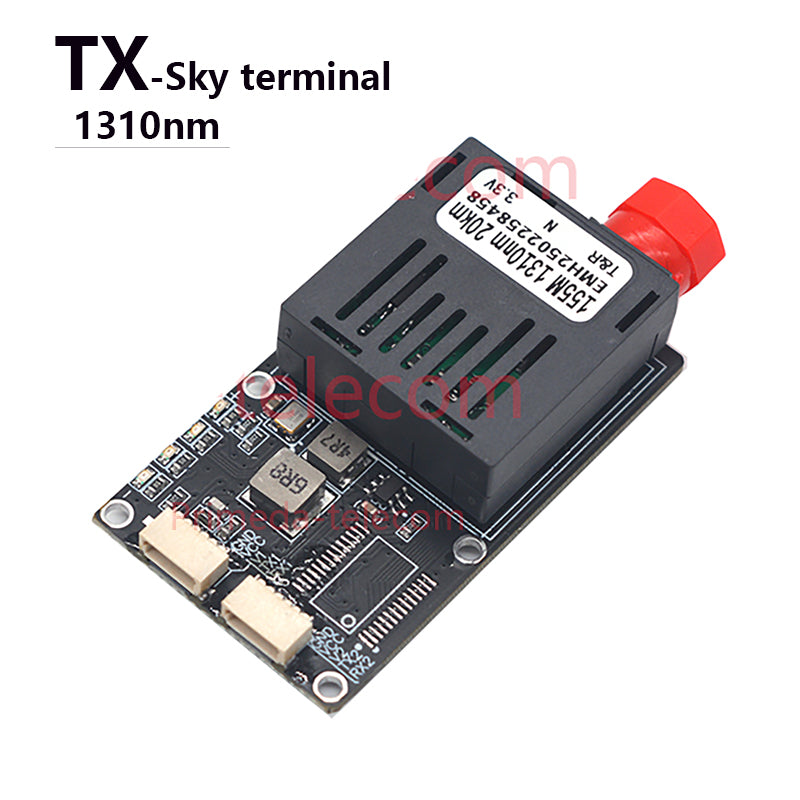

Model: 1 TX- Sky terminal
Subtotal: $25.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

Analog Video/2 RS232 over Fiber Transceiver transmitter and Receiver FC Singlemode up 20Km A pair Custom made

Analog Video/2 RS232 over Fiber Transceiver transmitter and Receiver FC Singlemode up 20Km A pair Custom made

$30.00 $25.00

Analog Video/2 RS232 over Fiber Transceiver transmitter and Receiver FC Singlemode up 20Km A pair Custom made

$30.00 $25.00
Model: 1 TX- Sky terminal

Custom made:

Video and TTL/RS232/RS485 is optional, 1080P/960P/Analog camera is optional. multichannel TTL/RS232/RS485 is optional. OEM factory, Fast production,Excellent Pricing, Contact us if needed.



Product Function

1x Analog Video

2x RS-232 bidirectional data

FC fiber connector

Singlemode single fiber up to 20km

Product description:

This item can extend one cvbs analog Video and two RS232 data signal through a fiber optic cable to remote display. Long transmission distance up to 20Km by single-mode fiber.
Widely used in various scenarios that require long-distance, video transmission, such as telecommunications, power, monitoring, industrial control, and other fields



Feature:

1. This video over fiber system is used to send cvbs analog Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.

2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber  0~300 meters

3. Support camera type: Analog cameras (video format :PAL, NTSC, SECAM )

4. Video format compatible for PAL, NTSC, SECAM

5. Mean Time between failures, More than 100,000 hours

6. Plug and play, no need to set up.











Optical index:

Optical Interface : FC

Optical wavelength 1310nm /1550nm

Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm

Applicable fiber optic: singlemode, and compatible with multimode fiber.

Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters



Video Index:

Video : 1 channel

Video Interface: BNC

Video Input / Output Impedance : 75ohm ( unbalanced ) ;

Video Bandwidth 100MHz;

Video format compatible PAL, NTSC, SECAM;

The sender input level: > 500mVp-p

The receiver output level: 1Vp-p

Input and output impedance: 75 ohm

The receiver rise and fall times:<0.8ns

The receiver maximum jitter:<0.2 UI





Product weight: about 20g/pcs



Package Include:

1 x TX PC Board

1 x RX PC Board



 Wide range of application.
