8xBIDI 12G-SDI/XLR Audio/Gig Ethernet over Fiber Optic Converter CNlinko dual fiber singlemode up 10Km Real-Time Video Transmission ,Crystal clear sound ,Custom made

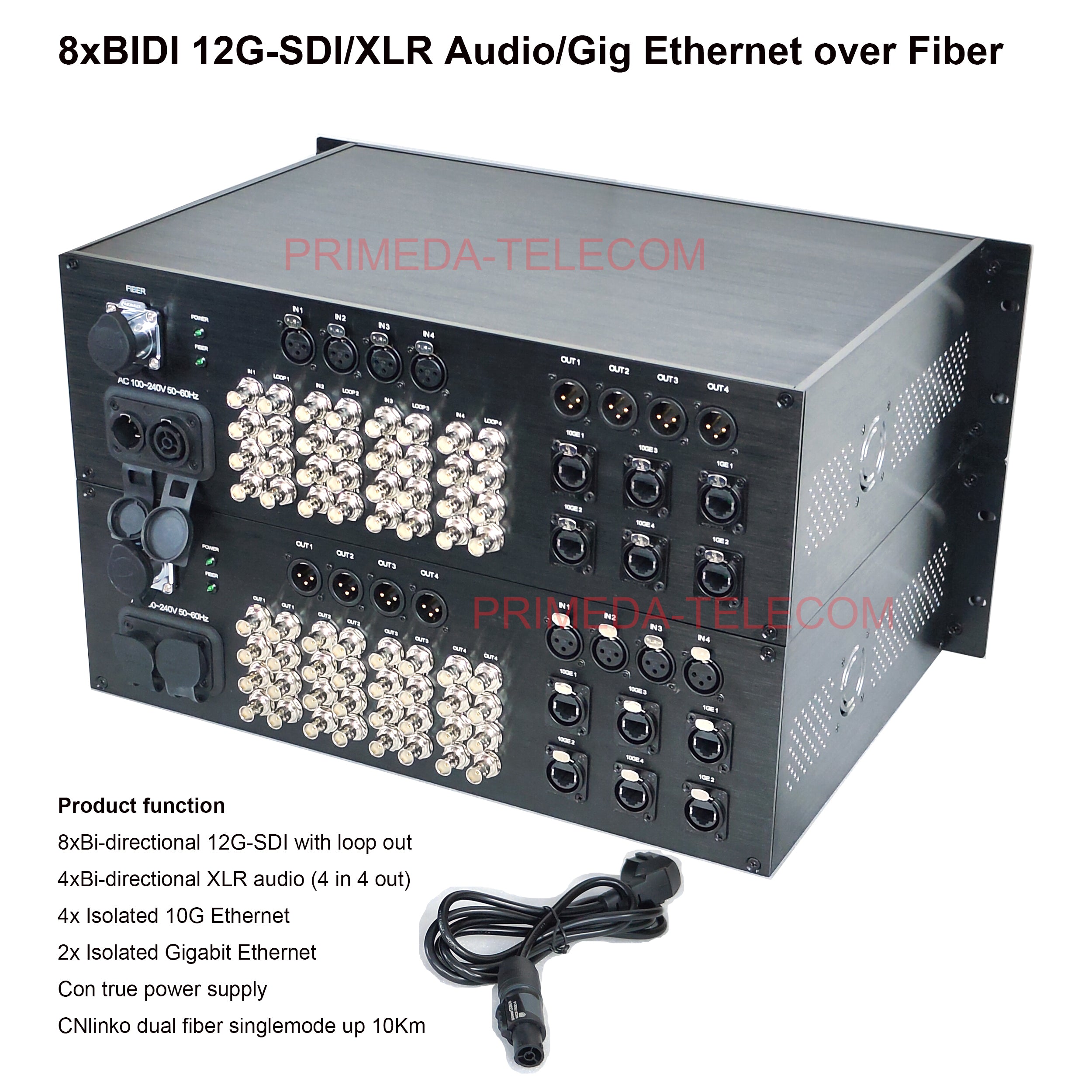

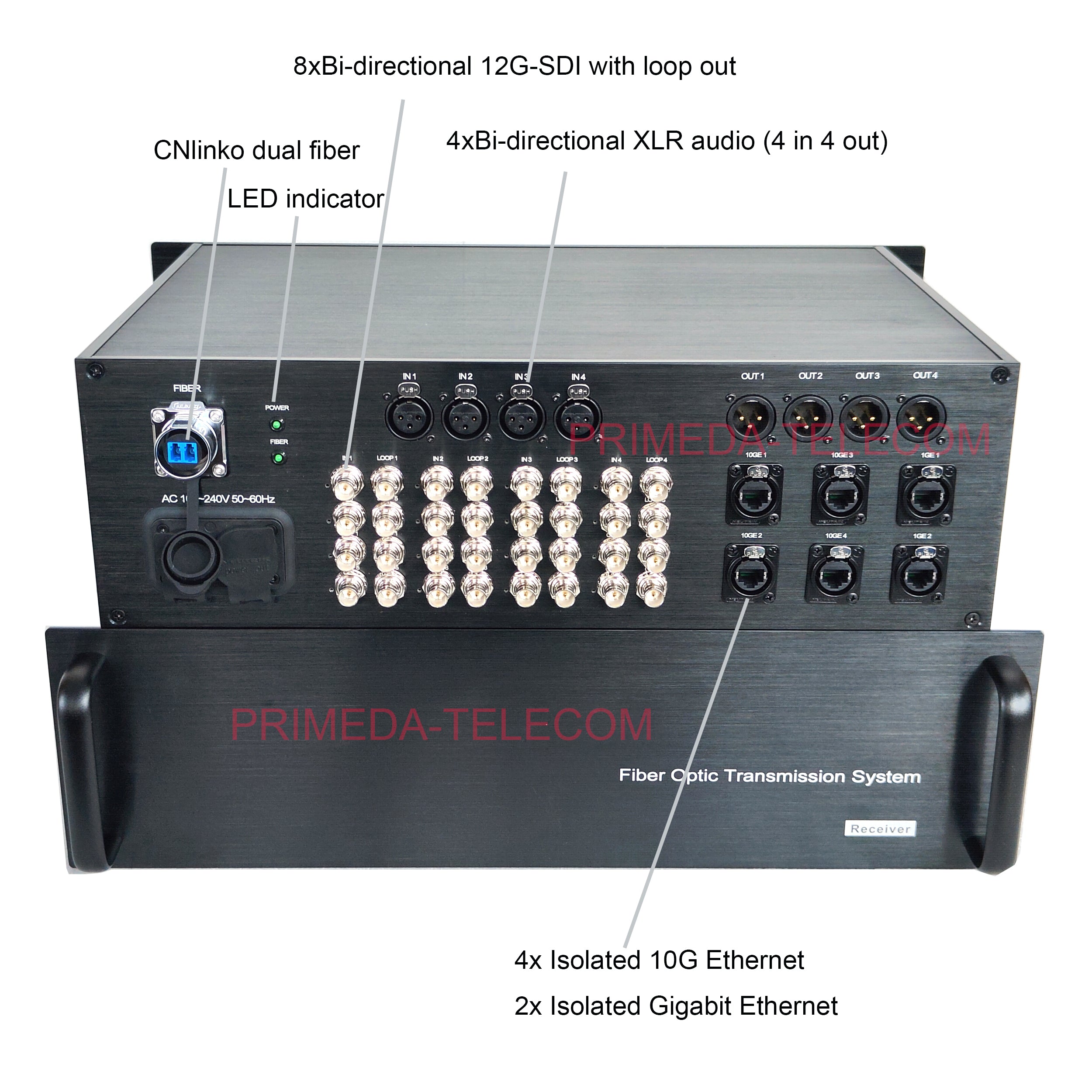

Product function

8xBi-directional 12G-SDI with loop out

4xBi-directional XLR audio (4 in 4 out)

4x Isolated 10G Ethernet

2x Isolated Gigabit Ethernet

Con true1 power supply

CNlinko dual fiber singlemode up 10Km

Description:

This multifunctional 12G-sdi/audio/ethernet fiber converter can extend 8 channel bidirectional uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable. 8x12G-SDI is transmitted from T (TX) in the direction of R (RX), other 8x12G-SDI signal is transmitted in reverse direction. It also can extend 4 Bi-directional XLR balanced Audio over a fiber cable to far end. 4 XLR Audio signal is transmitted from T (TX) in the direction of R (RX), other 4 XLR Audio signal is transmitted in reverse direction. Crystal clear sound, No Loss, No Delay.

Using Single-Mode dual fiber long transmission distances up to 10Km(6.2miles).

Feature:

This multifunctional 12G-sdi/audio/ethernet fiber converter can extend 8 channel bidirectional uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable. 8x12G-SDI is transmitted from T (TX) in the direction of R (RX), other 8x12G-SDI signal is transmitted in reverse direction. Single-Mode single Fiber or dual fiber transmission distances up to 10Km(6.2miles).

Support 4 Bi-directional XLR balanced Audio over a fiber cable to far end. 4 XLR Audio signal is transmitted from T (TX) in the direction of R (RX), other 4 XLR Audio signal is transmitted in reverse direction. Crystal clear sound,No Loss, No Delay.

Support 4x Isolated 10G Ethernet and 4 Isolated 100/1000Mbps Gigabit Ethernet, the network signal can be through same fiber optic from Transmitter side to Receiver side. it can extend network signal, like PC and IP camera with RJ45 connector. Note: the SDI signal can’t be extended by Network port (Cat5e cable).

Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD); Compatible with DVB-ASI and AES10 (MADI);

The input automatically detects signals 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;

Support single mode dual fiber transmission distance of 10KM (default).

Real-Time Video Transmission for Exceptional Quality and Resolution.

Plug and Play,No need to set up

Supports standard (digital video format) :

SMPIE 259M SD-SDI 480i, 576i

SMPIE 344M ED-SDI 480P, 576P

SMPIE 292M HD-SDI 720P, 1080i

SMPIE 424M 3G-SDI 1080P60Hz

SMPIE ST-2081 6G-SDI 2160P30Hz

SMPIE ST-2082 12G-SDI 2160P60Hz

XLR Audio Ports:

Number of Channels: 4 bidirectional (4 in and 4 out)

Audio physical interface：

Transmitter: XLR connector and 6.5mm audio line (dual use).

Receiver: XLR connector

Signal level：0-8Vp-p

Dynamic bandwidth：101 dB

Total harmonic distortion (THD)：-90 dB

Frequency of sampling：192 KHz

Audio A / D sampling：24 Bit

Noise-signal ratio (SNR)：100 dB

Amplitude-frequency characteristic：≤±0.5 dB

Audio input / output impedance ：And 600 Ω in equilibrium

Audio maximum input / output voltage：0~4V /0~2.5V

Audio gain：±0.1 dB

Maximum input level: ≥9.5 dBm

Nonlinear distortion: ≤0.2%

Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20μs) Differential mode: 6KV.

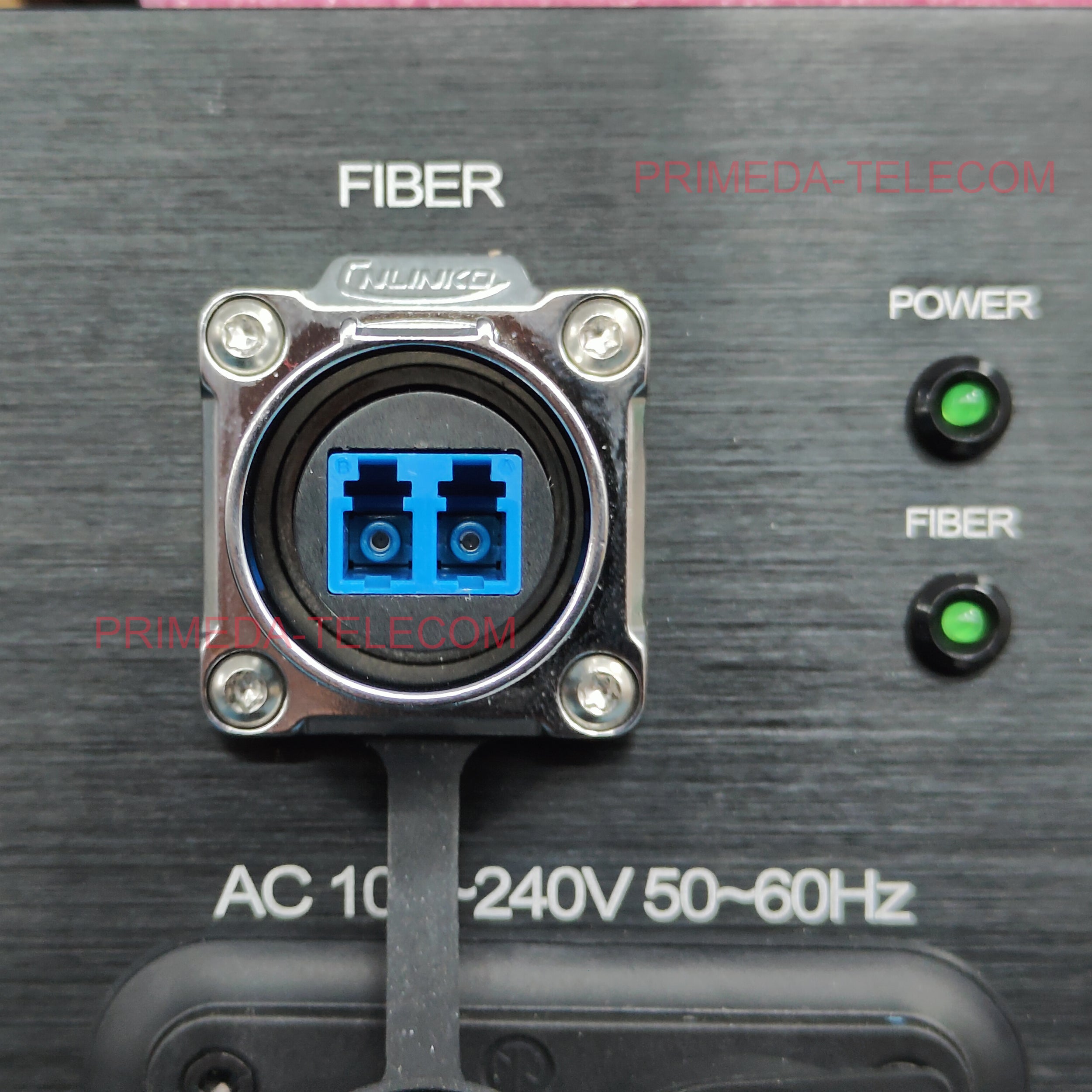

Optical Interface: CNlinko dual fiber port

Electrical :

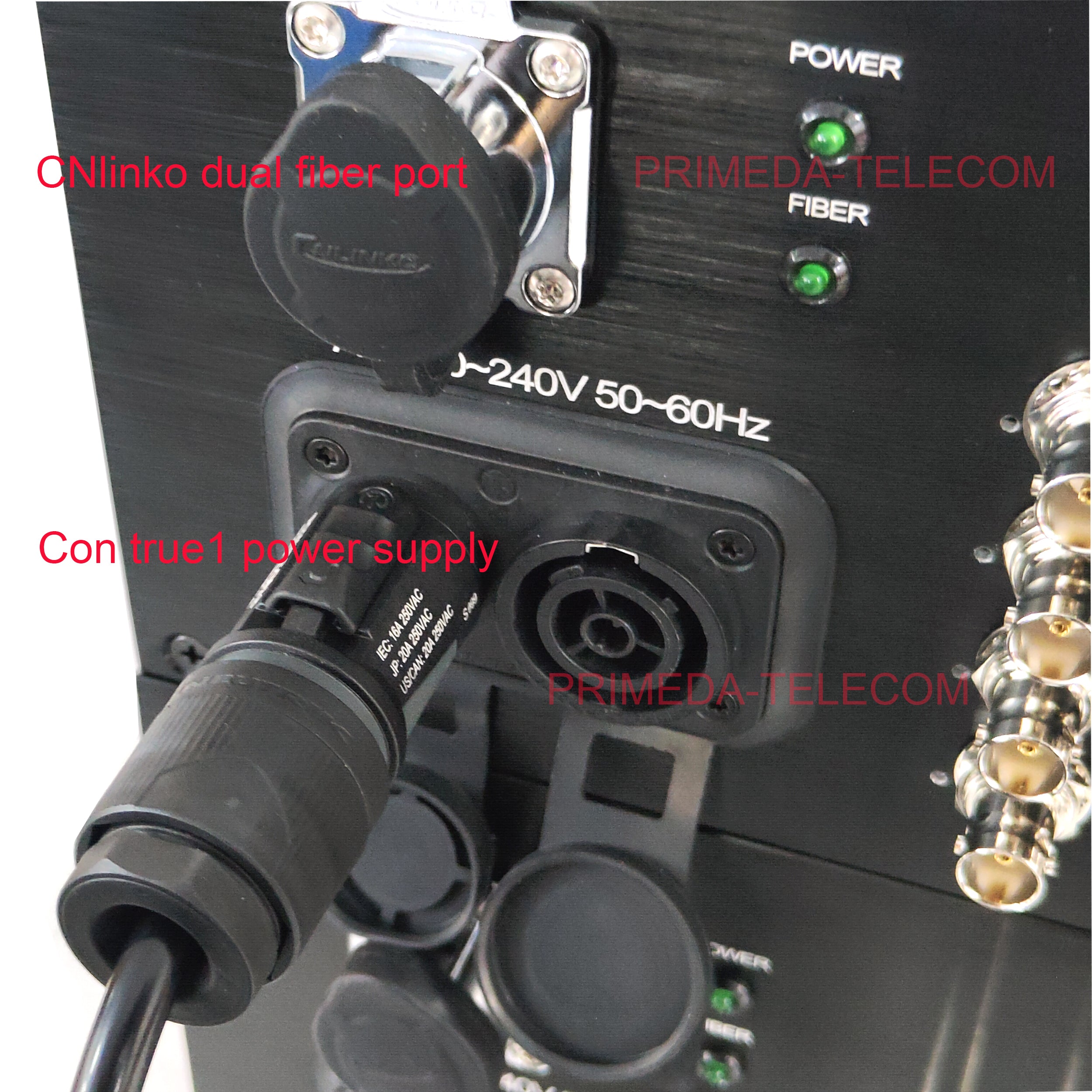

Power supply: Con true interface, AC100-240V (US/EU/UK/AU standard is optional)

Environmental

1. Operating temperature: -20°C ~ +75°C

2. Storage temperature: -40°C ~ +85°C

3. Working humidity: 0% ~ 95% (non-condensing)

4. MTBF:>100,000 hours

Package include:

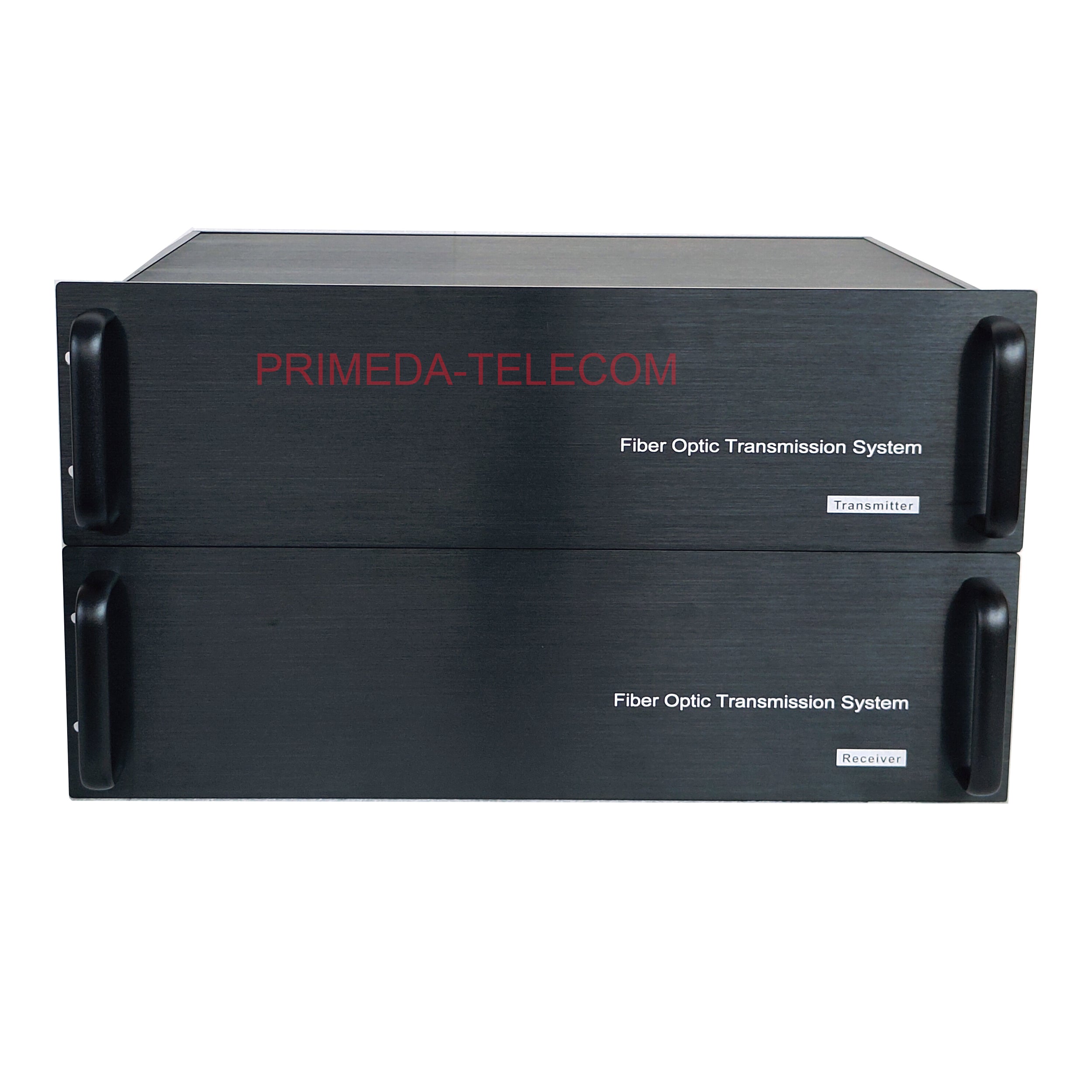

1x SDI Fiber Transmitter

1x SDI Fiber Receiver

2x Con true power supply cable

1x Manual.
