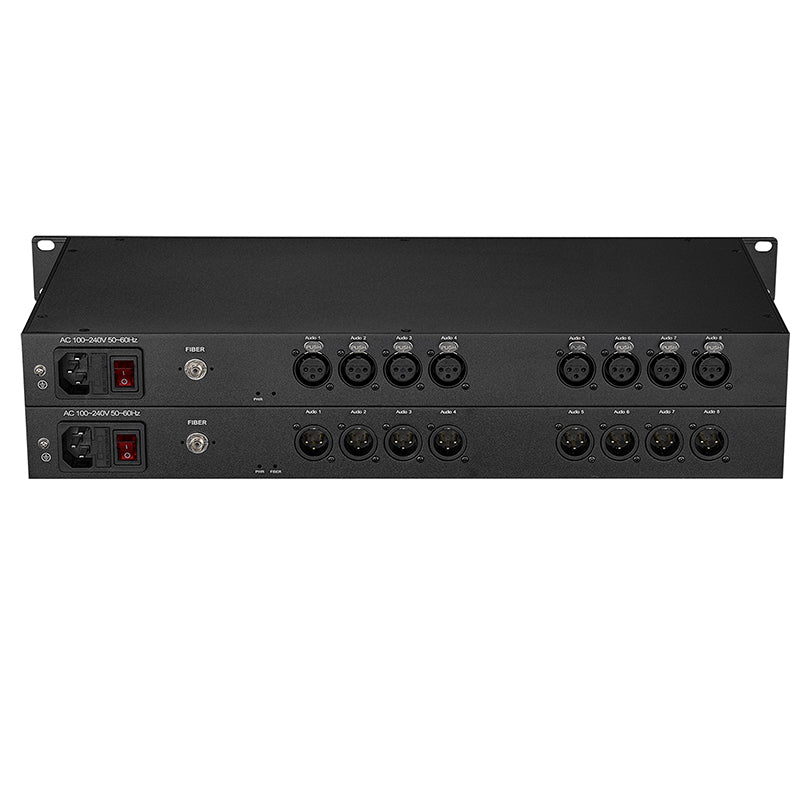

8 Port Balanced Audio Fiber Converter, 3Pin XLR Audio Optical Extender, Professional quality
Features: 【Function】This XLR Audio over fiber extender can extend 8 channels of Balanced XLR Broadcast level high...
- $599.00
$639.00- $599.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Features:
【Function】This XLR Audio over fiber extender can extend 8 channels of Balanced XLR Broadcast level high quality Audio over an optical fiber cable to far end. It allows 8 XLR audio device synchronous transmission, No debugging required. 8 XLR Audio signal is transmitted from T (TX) in the direction of R (RX)
【Universal for Fiber Types】The unit can work on both universal single-mode and universal multi mode optical fiber cable, Long distance transmission: Singlemode single fiber up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters). with ST optical interface.
【Crystal clear sound, No Loss, No Delay】Professional Quality ,Pure and Clean fiber optic audio signal transmission.
【Compact design, Sturdy Metal】Bilateral heat dissipation. LEDs for power supply and optical fiber link status indication can monitor the operating status of the system
【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations
【Plug and Play】No need to set up ,Simply plug in an Optical port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly.
Optical Port:
- Optical connector: FC(ST/LC/SC is optional)
- Wavelength: 1310nm/1550nm.
- Transmitting optical power: more than -7db.
- Receiving sensitivity: more than -24db
- Fiber: single fiber multimode (MM) or single mode (SM).
- Transmission range: 0-20km for SM, 0-500m for MM.
- Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.
XLR Audio Ports:
- Number of Channels: 8
- Input Connector: XLR (Female).
- Output Connector: XLR (Male).
- Pin wiring diagram : "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)
- Input / Output Impedance: 600 Ohm.
- Max input/output voltage: 4.0Vp-p.
- Signal level: 0.5-4Vp-p.
- Sampling frequency: 192 KHz.
- Audio A/D sampling: 24 Bit
- SNR: 100dB.
- Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20 μ s) Differential mode: 6KV.
General Spec:
- Power Consumption: ≤8W.
- Working temperature: -20°C ~ +70°C.
- Relative Humidity: 0% ~ 95% (non-condensing).
- MTBF: >100,000 hours.
- Installation: 1U rack mount
- Support wide range working Voltage: AC100-240V 50/60Hz
- Power plug：US/EU/UK/AU standard is optional.
- Dimension: 445*220*44.5mm (LxWxH)
- Weight: 4.5Kg/set
Package include:
- 1x Balanced XLR Audio Fiber Transmitter
- 1x Balanced XLR Audio Fiber Receiver
- 2x Power supply adapter
- 1x Free 3m fiber patch cord.
- 1x Manual.
