4K 60Hz HDMI/Gigabit Ethernet/ 3.5mm Audio Over Fiber Optic Converters LC Singlemode Up 10Km Uncompressed Lossless for Live TV/TV/PC/Set-top box
Feature: 1. The 4K HDMI over fiber exender can provides extension of 4K@60Hz HDMI signals long distances...
Vendor:
Primeda-telecom
SKU:
PMD-4KHDMI-1GE-LC
Availability:
In Stock
Product Type:
HDMI fiber converters
- $499.00
$699.00- $499.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days

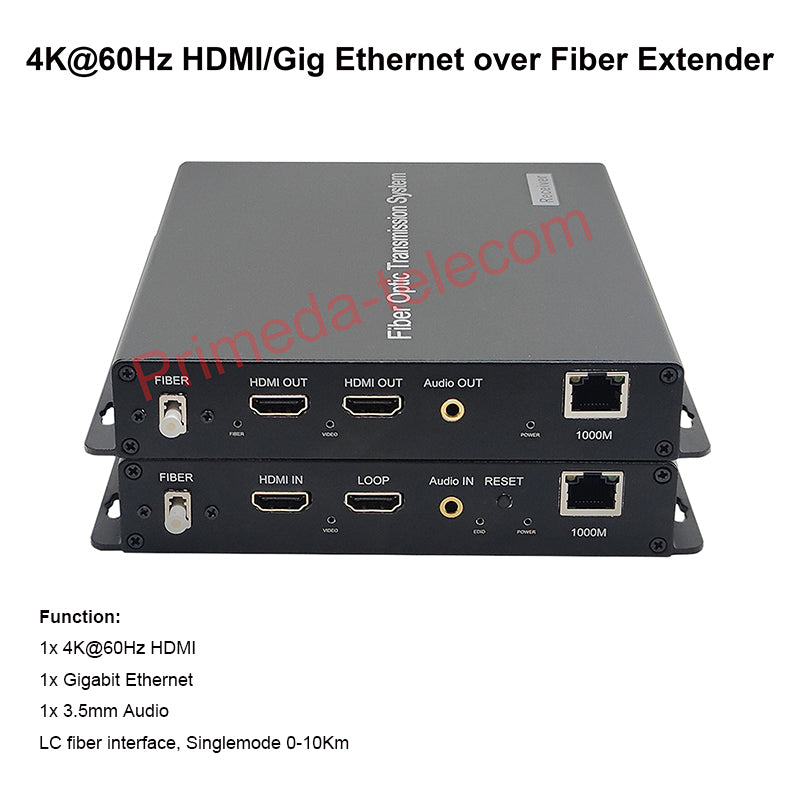

1. The 4K HDMI over fiber exender can provides extension of 4K@60Hz HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4Kx2K (4096x2160@60Hz),Long transmission distance can reach up to 10km(6.2 miles) through a single LC/LC siglemode fiber optic cable
2. Support a gigabit ethernet and 3.5mm independent audio over same fiber cable
3. Uncompressed ,High speed Lossless signal transmission

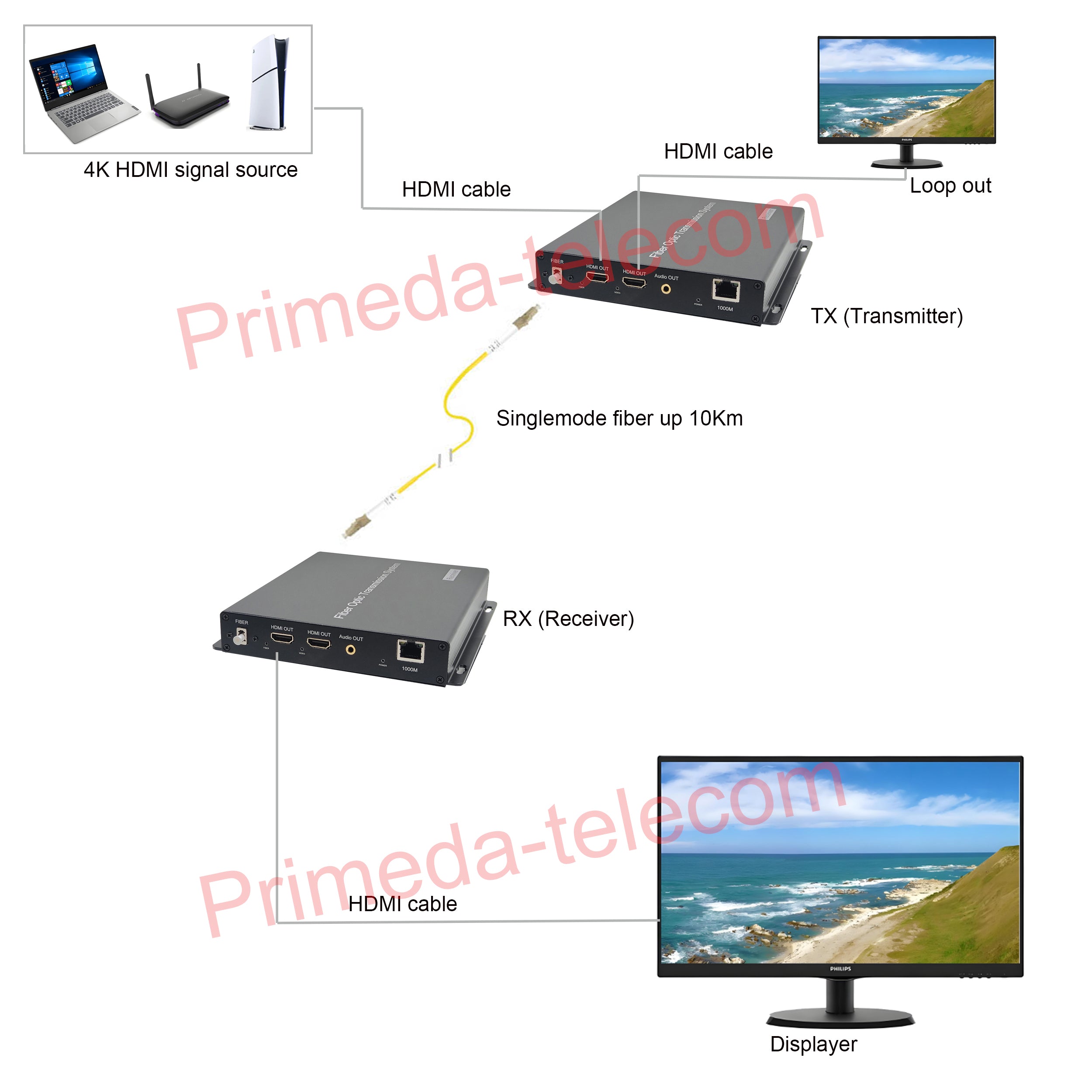

4. Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, used fiber optic to connect the transmitter to Receiver, then connect your HD TV from a long distance place to the Receiver.
5. Plug and play, No need for on-site adjustment,Simply plug in HDMI port/Ethernet port/3.5mm jack and LC optical port, and it will work immediately
Application for:
1.Stage rental;
2.LED large screen;
3.Projection fusion;
4.Live TV;
5.Radio and television and video recording;
6.Video conferencing;
7.Information release and display system;
8.Command and dispatch center;
Optical index:
Optical connector :LC/Simplex
Video index
HDMI standard :HDMI 2.0
Video bandwidth:18Gbps
Video resolution:480i ~1080p50/60Hz,4Kx2K@24/30Hz,4k2k@60Hz
Color space:RGB,YCbCr 4:4:4/4:2:2,YUV 4:2:0
Maximum pixel clock:594MHZ
Effective cable length: ≤10M
Physical interface:HDMI Female
Audio index
Connector: 3.5mm audio
Sampling frequency: 48K
Sampling depth:24bit
Dynamic bandwidth:96db
Total harmonical distortion (THD):-88db
Signal to noise ratio（SNR）:96db
Audio input/output impedance:600Ω
Signal level:VPP 3.5V
Physical interface:3.5mm stereo audio socket
Signal type: Stereo channel
Others
Operating temperature:-20°C ~75°C
Storage temperature: -40°C ~85°C
Power supply:12V1A (US/EU/AU/UK power supply adapter is optional)
Power dissipation＜1.5W
Outer box Material: Aluminum alloy
Mean Time Between Failure (MTBF): ≥100,000 hours
Product weight: 1.2kg/Set
LED Indicated lights:
Video light: TX: turn on when connect to video. RX: when connect to fiber optic.
Fiber light: TX and RX light on when fiber link established
PWR light: Power light, Turn on when connect to power. Turn off when no power.
Package include.
1 x 4K@60Hz HDMI fiber Transmitter
1 x 4K@60Hz HDMI fiber Receiver
1 x Free 3M LC/LC fiber patch cord
2 x External power adapter
1 x Manual.
