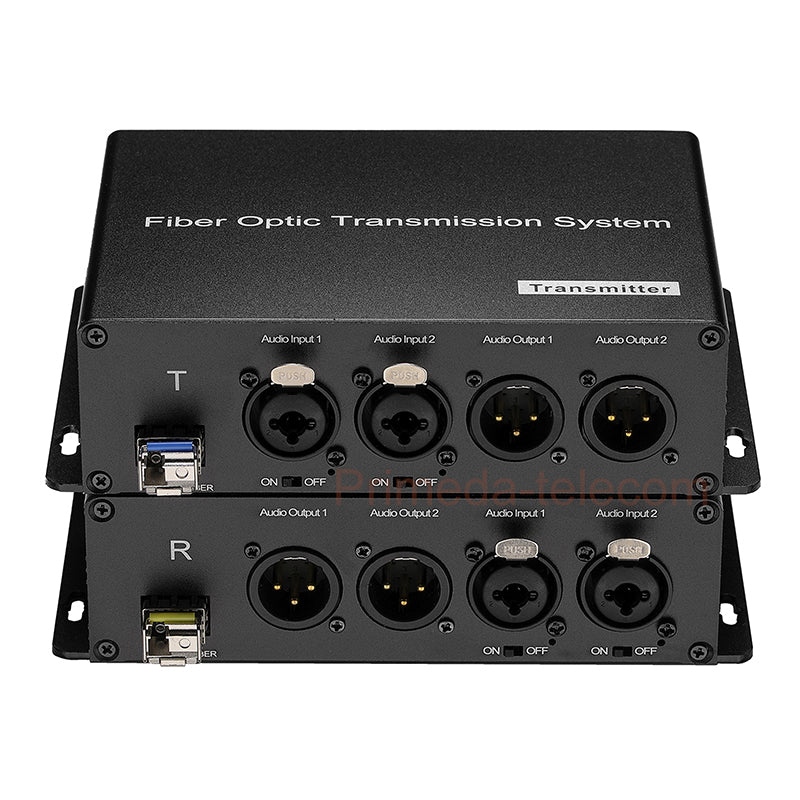

48V Phantom XLR Balanced Audio to Fiber optical Converters Extenders- BIDI 2 channels, LC Single-mode single fiber 20Km SFP include Uncompressed Professional Crystal Clear Sound A Pair

Feature:

【XLR Audio over Fiber】This unit can extend 2 Bi-directional 48V phantom XLR balanced Audio over a fiber cable to far end. 2 XLR Audio signal is transmitted from T (TX) in the direction of R (RX), other 2 XLR Audio signal is transmitted in reverse direction.

【With 48V phantom power supply】The transmitter uses dual-use XLR Cannon connector , supporting 2 kinds of physical interfaces, XLR Cannon audio line and 6.5mm audio line which can supply power of 48V phantom for Microphones. Each audio supports 48V phantom power switch key, according to the field demand can adjust the phantom power switch, high flexibility.

【Long Transmission distance】It can work on both single-mode and multi-mode fiber cable. Long transmission distance: Single mode up to 12.4 miles (20Km), Mutli-mode single fiber up to 0.31 miles(500meters)

【Crystal clear sound,No Loss,No Delay】Professional quality design ,Pure and Clean fiber optic audio signal transmission.

【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations

【Plug and Play】No need to set up ,Simply plug in an Optical LC port and XLR/6.5mm audio connectors at TX and RX sides, it will have crystal clear sound instantly.

Attention:

The XLR audio fiber extender signal can be outputed to the power amplifier, but the power amplifier audio source can not output the audio source signal to the fiber extender, otherwise the fiber extender will be burned.

We suggest that user use the short optical fiber cable to do first time test to ensure that all the functions of the equipment are normal, and then do long-distance transmission.

Optical Port:
Optical connector: LC

Wavelength: 1310nm and 1470nm~1610nm (selected according to the function of the device).
Transmitting optical power: more than -7db.
Receiving sensitivity: more than -24db
Fiber: single fiber multi-mode (MM) or single-mode (SM).
Transmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.

XLR Audio Ports:

Number of Channels: 2 bi-directional

Audio physical interface：

Transmitter: XLR connector and 6.5mm audio line (dual use).

Receiver: XLR connector

Signal level：0-8Vp-p

Dynamic bandwidth：101 dB

Total harmonic distortion (THD)：-90 dB

Frequency of sampling：192 KHz

Audio A / D sampling：24 Bit

Noise-signal ratio (SNR)：100 dB

Amplitude-frequency characteristic：≤±0.5 dB

Audio input / output impedance ：And 600 Ω in equilibrium

Audio maximum input / output voltage：0~4V /0~2.5V

Audio gain：±0.1 dB

Maximum input level: ≥9.5 dBm

Nonlinear distortion: ≤0.2%

Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20μs) Differential mode: 6KV.

General Spec:
Working temperature: -20°C ~ +70°C.

Storage temperature：-40 to 80°C
Relative humidity:5 to 95% (non-condensing)

Working life: more than 1,0,000,000 hours
Installation: stand-alone.
Support wide range working Voltage: AC100-240V 50/60Hz, DC12V
Power plug：US/EU/UK/AU standard is optional.
Dimension: 167mm(L)×114mm(W)×45mm(H).

Package include:
1x Balanced XLR Audio Fiber Transmitter
1x Balanced XLR Audio Fiber Receiver
2x Power supply adapter (US standard)
1x FREE 3M Fiber patch cord
1x Manual.
