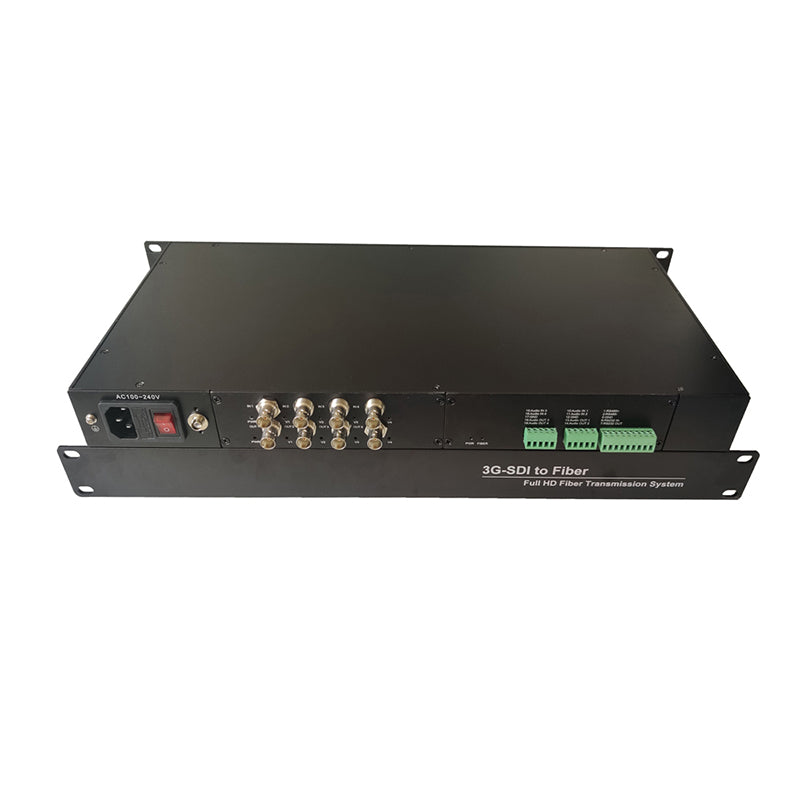

4 channel Bidirectional 3G-SDI Video Audio RS485 RS232 Fiber Optic Media converter,FC SM 20km Professional, Support 1080p 60HZ 50Hz 30Hz more
Function: 4x 3G-SDI (Bidirectional, compatible with HD-SDI,SD-SDI) 4x Audio (bidirectional) 1x RS-485 data (bidirectional) 1x RS-232 data (bidirectional)...
- $2,799.00
$3,199.00- $2,799.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days

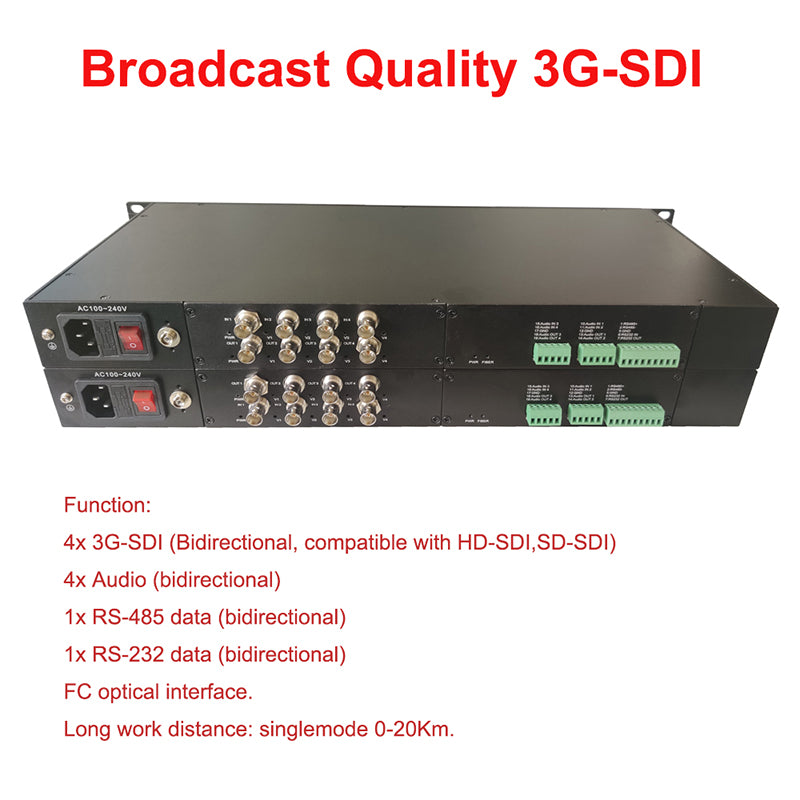

Function:
- 4x 3G-SDI (Bidirectional, compatible with HD-SDI,SD-SDI)
- 4x Audio (bidirectional)
- 1x RS-485 data (bidirectional)
- 1x RS-232 data (bidirectional)
- FC optical interface.
- Singlemode 0-20Km.
Quick custom made, OEM, MOQ 1set is acceptable. Contact us if needed.
Features
- Broadcast Radio and television-grade optical fiber uncompressed real-time audio and video transmission equipment.
- Single fiber optical transmission, 4channels bidirectional 3G-SDI, and 4 channels bidirectional audio.
- Support ASI video signal format, compatible with HD-SDI, SD-SDI.
- Support for broadcasting and TV recording resolution 1920*1080i@50HZ, support maximum resolution 1080P@60HZ.Support resolution:1080p60HZ/50HZ,1080P30HZ/25HZ,1080i60HZ/1080i 59.94/50HZ,720P60HZ/50HZ, 576i,480i.
- Support signals accord with standards of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
- Support onebidirectionalRS485 data.
- Support one bidirectional RS232 data.
- Support long-distance transmission up to 20 kilometersthrough a singlemode fiber.
- With clock recovery, clock shaping.
- Plug and play, easy to use
Audio:
- Connector: terminal block (RCA or 3.5mm interface is optional).
- Channels: 4 bi-directional
- Audio bandwidth Hz~20kHz
- Input and output impedance 600Ω
- Peak output and input signal voltage 1.5Vpp.
- Sampling frequency 32KHZ.
RS-485 Data:
- Terminal block connector, 1CH bidirectional, for remote control PTZ .
- Transfer Rate : 300B/S~38.4Kb/S
- maximum transmission distance of RS485 is 1200m
RS-232 Data:
- Terminal block connector, 1CH bidirectional, for remote control PTZ .
- Transfer Rate : 300B/S~115.2Kb/S
- maximum communication distance of RS232 is 15meters.
Optical interface:
- Connector: FC (ST/LC is optional)
- Wavelength 1310-1550/1450/1470/1490/1510/1530/1570/1590/1610nm
- Code rate 100MHZ-3.125GHZ.
Other:
- Power supply: AC100V-240V,US/EU/UK/AU standard is optional.
- Power ＜15W
- Working temperature -20°C ~ 70°C
- Storage temperature -40°C ~ 85°C
- Working humidity 0 ~ 95% (no condensation)
- Storage humidity 0%~90%RH (no condensation)
- Weight 4.2kg/pair (with power supply and outer packaging 4.5kg/set)
Packing Contents

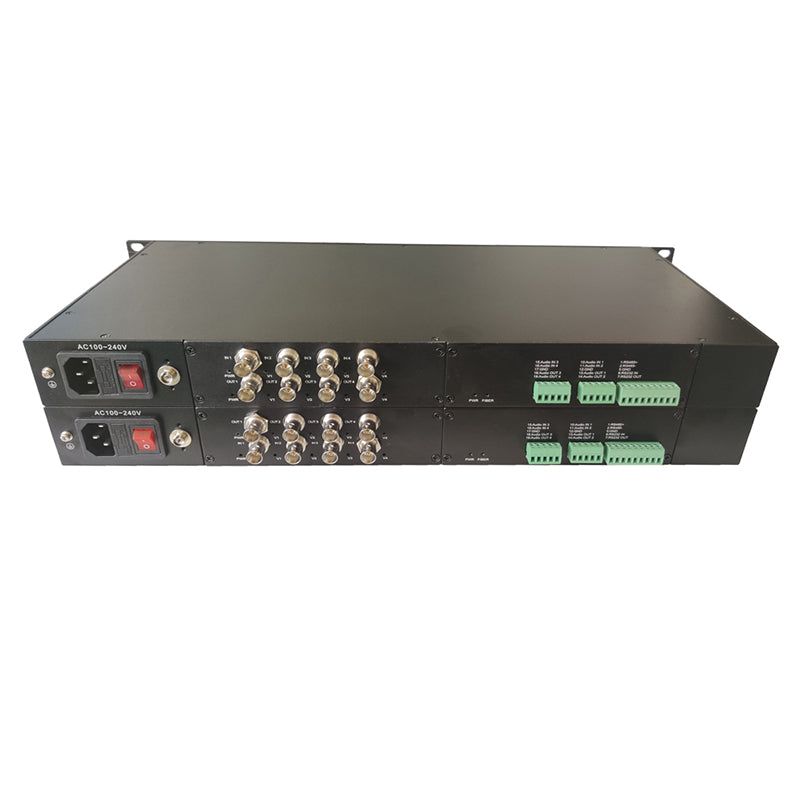

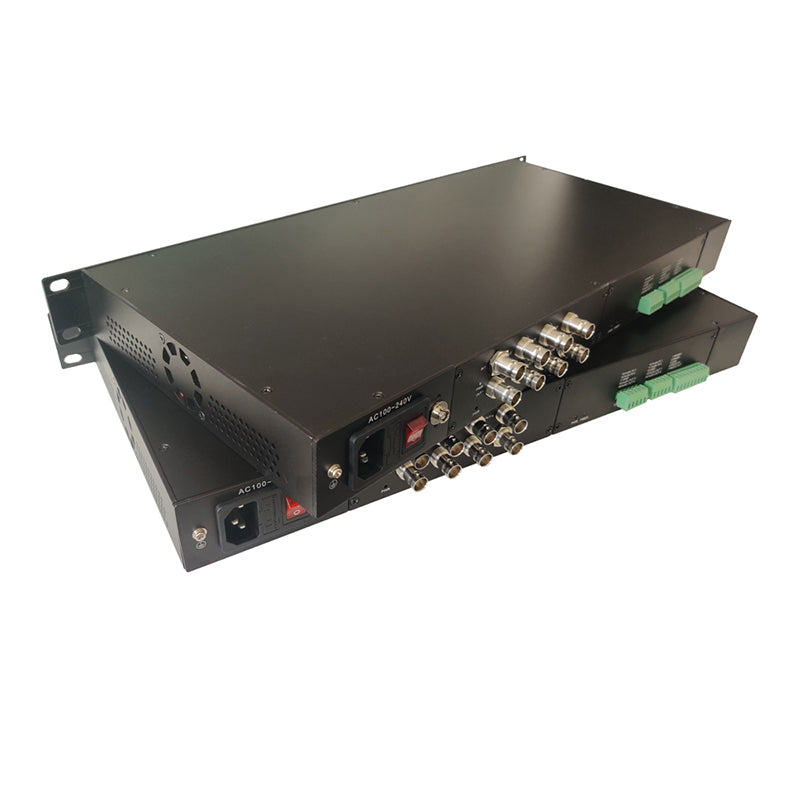

- 1 x 3G-SDI Transmitter
- 1 x 3G-SDI Receiver
- 2 x Power Supply cable
- 1x 3M FC-FC SM fiber patch cord.
- User manual.
