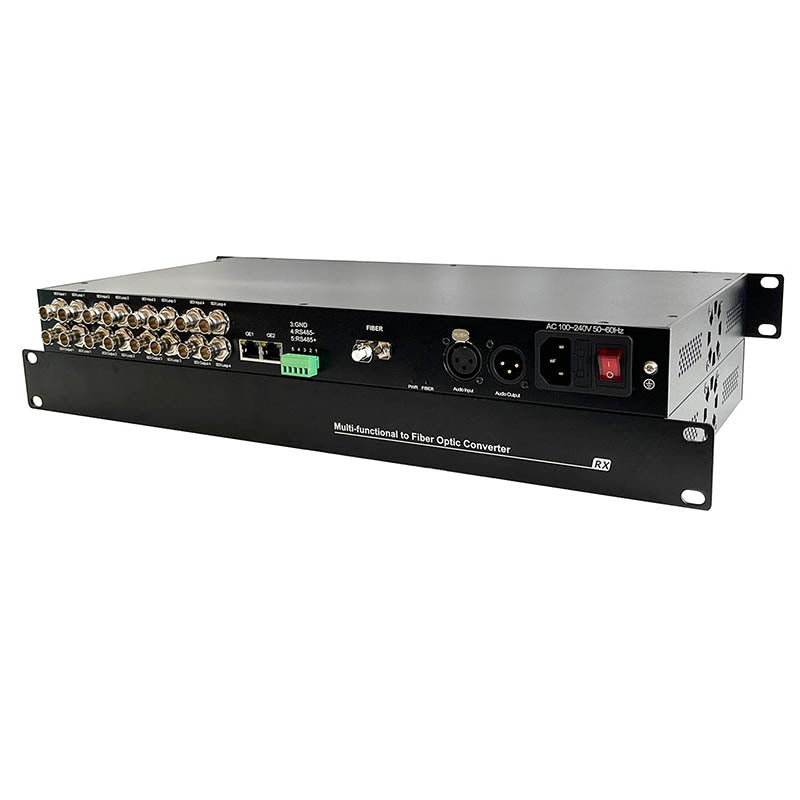

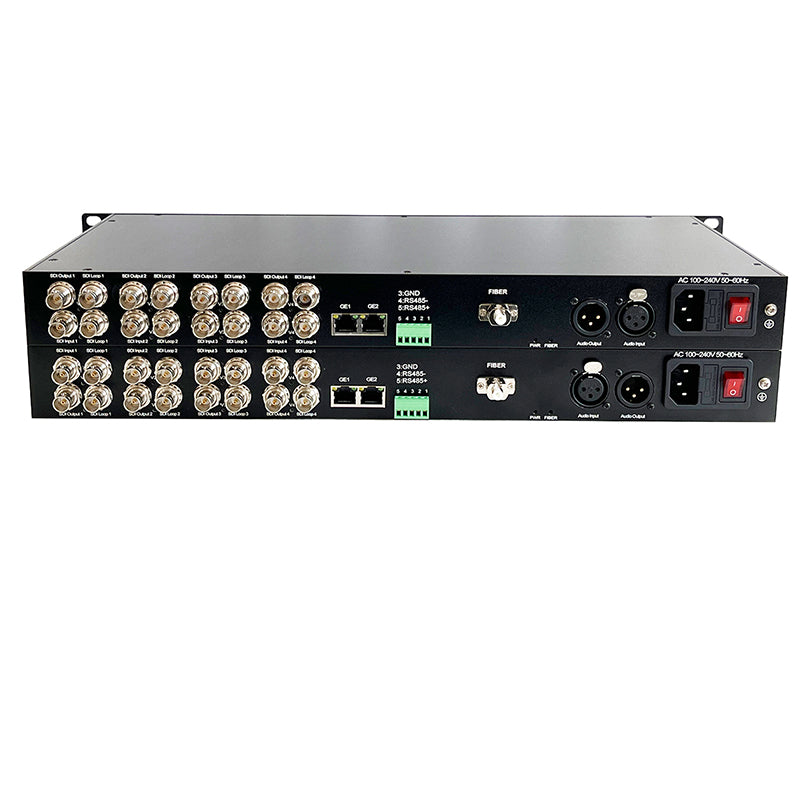

4 Bidi 3G-SDI Video XLR balanced Audio Gigabit Ethernet Extender over Fiber optic-Uncompressed Broadcast quality Singlemode up to 20Km Professional
Description: The unit can extend Bi-directional 4 channels 3G-SDI Video/Audio and 1x Bidirectional XLR balanced audio and...
- $3,399.00
$3,629.00- $3,399.00
- Unit price
- per
Please hurry! Only 50 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Description:

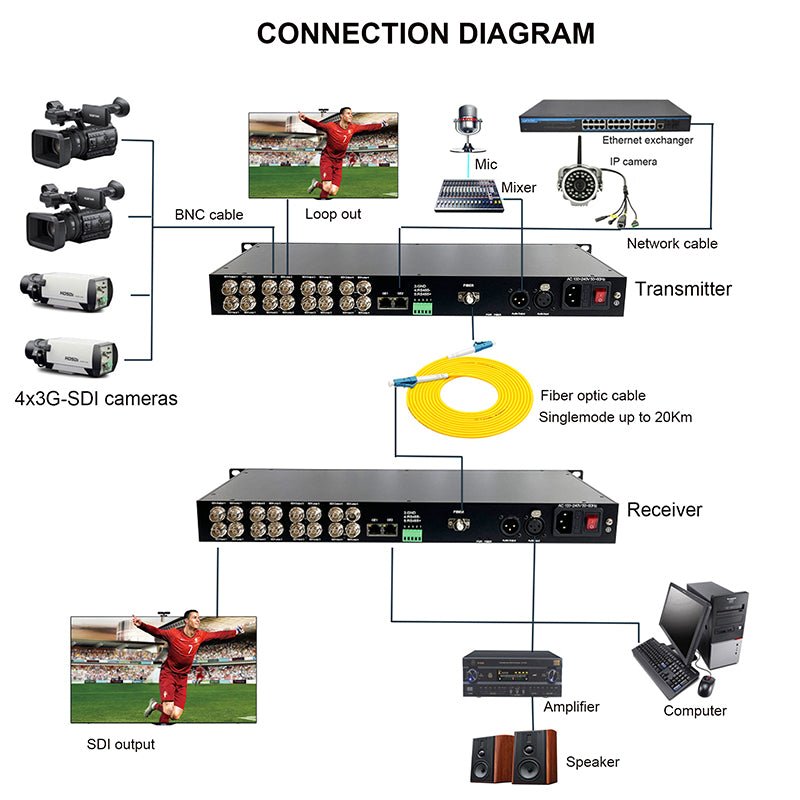

The unit can extend Bi-directional 4 channels 3G-SDI Video/Audio and 1x Bidirectional XLR balanced audio and 2 Gigabit Ethernet and 1 Bi-directional RS485 data over a fiber optic cable to far distance synchronously. Extension range up to 20Km by singlemode fiber. Uncompressed real-time audio and video transmission, Professional broadcast level high quality, No delay.
Quick custom made, OEM, MOQ 1set is acceptable. Contact us if needed.

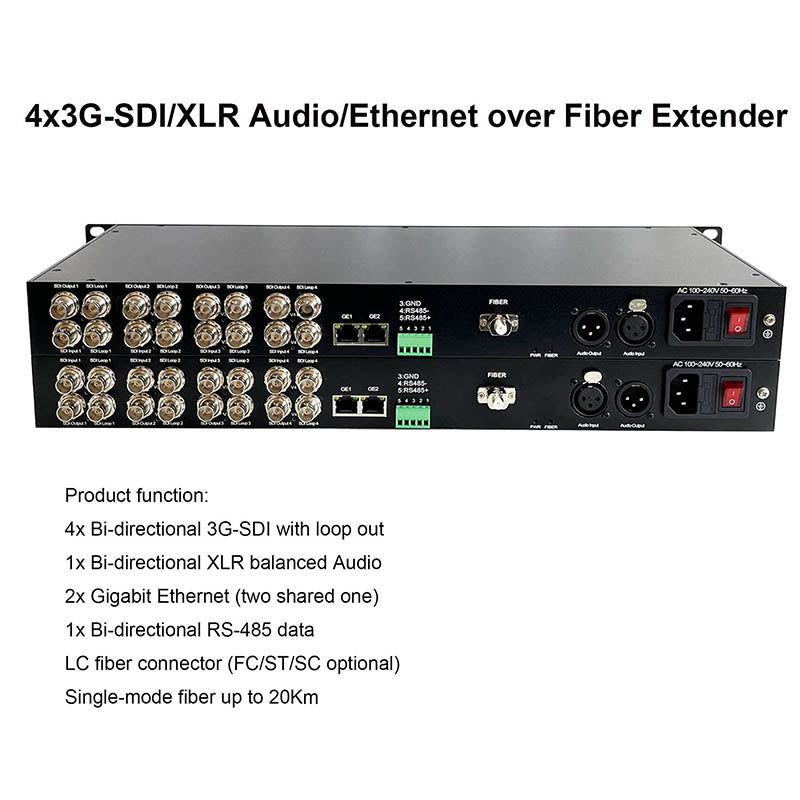

Function:
1. 4x Bi-directional 3G-SDI with loop out
2. 1x Bi-directional XLR balanced Audio
3. 2x Gigabit Ethernet (two shared one)
4. 1x Bi-directional RS-485 data
5. LC fiber connector (FC/ST/SC optional)
6. Single-mode fiber up to 20Km.
Features
- Extend 4 channelsBi-directional uncompressed 3G-SDI, HD-SDI or SD-SDI video over single fiber.
- Support video resolution 1080P@60,59.94, 50,30,25,24Hz and 1080I@60,50Hz and more.
- Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
- Support 1 channel of Bi-directional XLR balanced audio.
- Support 2channel Gigabit Ethernet (two shared one), the network signal can be through same fiber optic from Transmitter side to Receiver side. Extension range up to 20Km(12.4mi). it can extend network signal, like PC and IP camera with RJ45 connector.
- With clock recovery, clock shaping
- Supports embedded digital audio stream
- Single-Mode Fiber Support for Distances up to 20Km(12.4miles), Compatible with multimode Fiber 0-200Meters
- Real-Time Video Transmission for Exceptional Quality and Resolution
- LED Status Provide Rapid Indication of Operating Parameters
- No EMI or RFI and no ground loops, Support hot swap.
- No need to set up, plug and play.
SDI Video:
1. Physical Interface: BNC
2. Max Resolution: 1920 x 1080 @ 60Hz
3. Video Input and Output Impedance: 75Ω (unbalanced)
4. Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
XLR Audio Ports:
Number of Channels: 1 Bi-directional
Input Connector: XLR (Female).
Output Connector: XLR (Male).
Input / Output Impedance: 600 Ohm.
Max input/output voltage: 4.0Vp-p.
Signal level: 0.5-4Vp-p.
Sampling frequency: 192 KHz.
SNR: 100dB.
Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20 μ s) Differential mode: 6KV.
Data
1. Physical Interface: standard industry block terminal
2. Interface signal: RS485 reverse direction
3. Baud Rate:0-400Kbps
4. BER < 10 -9
5. Operation Mode: Full duplex / half duplex
Environmental
1. Operating temperature: -20°C ~ +75°C
2. Storage temperature: -40°C ~ +85°C
3. Working humidity: 0% ~ 95% (non-condensing)
4. MTBF:>100,000 hours
Package Include:
- 3G-SDI Transmitter
- 3G-SDI Receiver
- 2 x External Power cable (US/EU/UK/AU standard is optional)
- 1x FREE 3M fiber patch cord
- 1 x User manual
