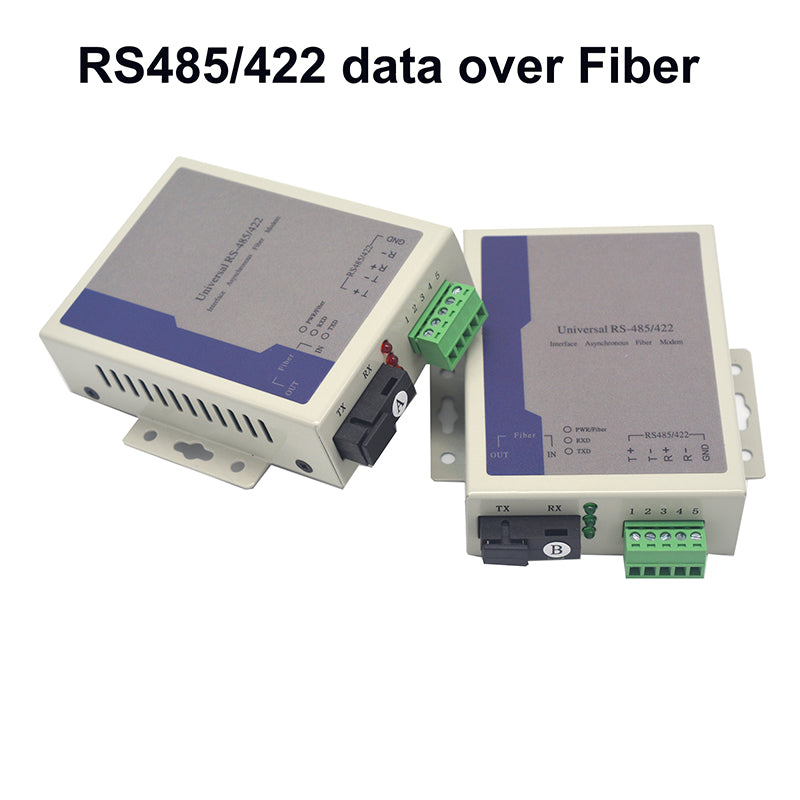

2 BIDI RS485/RS422 data over fiber optic Extenders SC Singlemode up 20Km Multimode 500m A set
Features Support 2 BIdirectional RS-485 data (Correspond 1xRS422) or one RS422 data over a fiber optic cable...
Vendor:
Primeda-telecom
SKU:
PMD-2xRS485-SC
Availability:
In Stock
Product Type:
RS485/422/232 fiber converters
- $42.00
$50.00- $42.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Features
Support 2 BIdirectional RS-485 data (Correspond 1xRS422) or one RS422 data over a fiber optic cable simultaneously
Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber distance up to 20 km(12.4 miles), Multimode fiber distance up to 500m(0.31 miles).
Adaptive single-mode fiber. Zero delay automatic forwarding
Asynchronous transmission, point-to-point application, RS-485 interface and fiber optic conversion
Automatic detection of serial port speed, discrimination and control of data transmission direction
Mainly applicable for Industrial automation control, access control, one card, parking lot and other systems
LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.
Plug and play,No need to set up.
Specification:
Maximum communication rate>0-115.2Kbps
5V1ADC voltage input, external power supply
Default FC interface
Working wavelength: 1310nm/1550nm
The interface provides 1500W surge protection and 15KV electrostatic protection
Optional : Multi mode communication can reach 2 kilometers, and single mode communication can reach 20-120 kilometers
RS-485 supports 32 point polling (customizable 128 points)
RS-485 data
Standard compliant with EIA RS-485/422 standard
RS-485 signal T+, T -, R+, R-
Fiber optic signal IN, OUT
Asynchronous working mode, point-to-point
The direction control adopts data flow automatic control technology to automatically distinguish and control the direction of data transmission
Baud rate 0-115200Kbps, automatically detects signal rate
Fiber optic wavelength 1310nm/1550nm
The transmission distance of the electrical port is 1000 meters from the RS-485 port
Optical port transmission distance single mode 20-120 kilometers
Interface protection 600W surge protection, 1500V static protection
Load capacity RS-485 port supports 32 nodes
Electrical port form 7-position wiring terminal
Working environmental:
Working temperature -25 ℃ to 70 ℃
Storage temperature -40 ℃ to 85 ℃
Relative humidity: 5% to 95%
Power supply:
1.Working voltage AC100~240V, DC5V
2. Weight: 0.7kg/set
3. Size: 110x90x25mm (HxWxH)
4. US/EU/UK/AU power supply standard is optional.
Package include:
1x RS485 Fiber Transmitter
1x RS485 Fiber Receiver
2 x External Power supply adapters
1 x User manual
