2 port Analog Audio Fiber Converters,Unbalanced RCA over fiber extender for Broadcast 1 pair
Features: This unit can extend 2 channels of Unbalanced RCA Audio over an optical fiber cable to far end. It...
- $79.00
$92.00- $79.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Features:

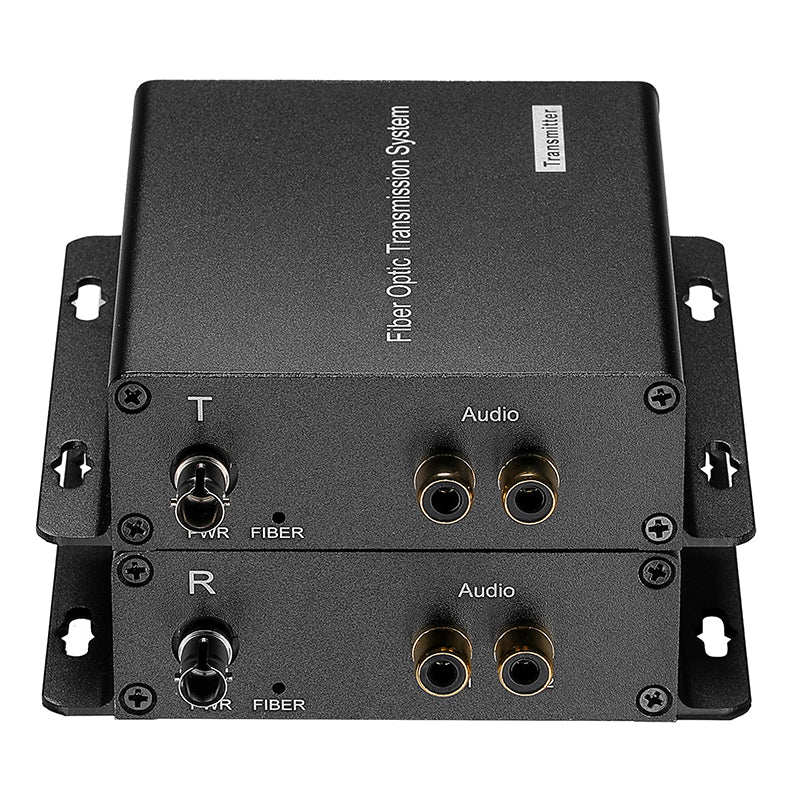

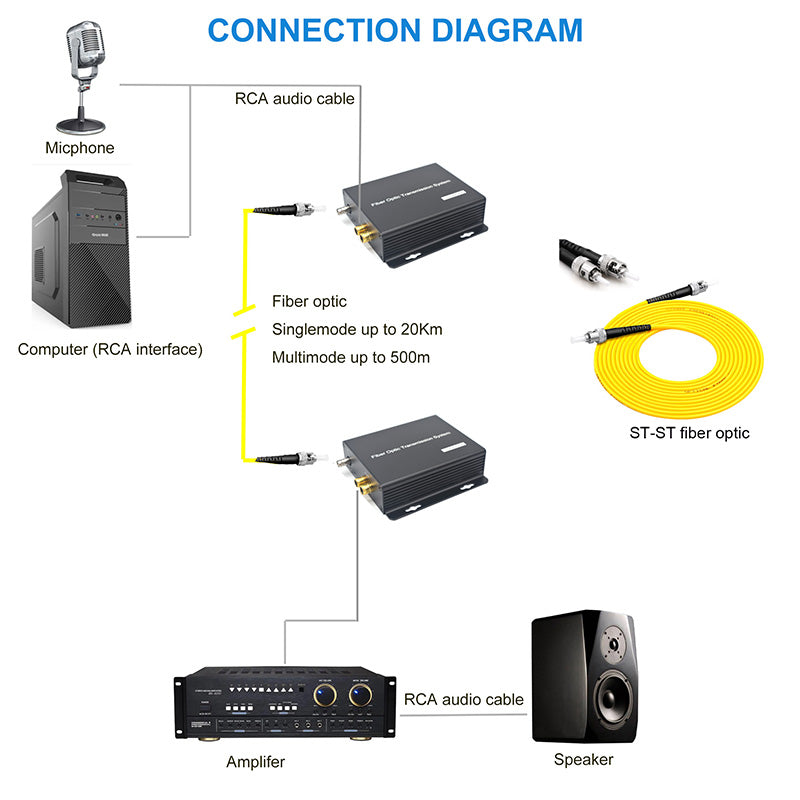

- This unit can extend 2 channels of Unbalanced RCA Audio over an optical fiber cable to far end. It allows 2 RCA audio device synchronous transmission, 2 RCA Audio signal is transmitted from T (TX) in the direction of R (RX).
- Compatible with Singlemode and Multimode optical fiber cable. Single mode single fiber up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters).
- Adopt FPGA, digital coding/decoding and clock recovery technology, high integration and high stability ,it is much better than ordinary one on marketing.
- LEDs for power supply and optical fiber link status indication which can monitor the operating status of the system.
- Typically used in applications for Campus, public places, Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and more. and are available for stand-alone and desktop type, or wall mounted, installations.
- No need to set up ,Simply plug in an Optical port and RCA audio connectors at TX and RX sides,
Optical Port:
- Optical connector: FC/ST/SC is optional.
- Wavelength: 1310nm&1470nm~1610nm.
- Tx power ＞-7db
- Rx sensitivity ＞-24db
- Transmission range: 0-20km for SM, 0-500m for MM.
- Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.
Audio index:
- Dynamic bandwidth:96dB
- Total harmonic distortion (THD): -68dB
- Signal-to-noise ratio: -68dB
- Signal-to-noise ratio（S/N）: 60dB
- Sampling frequency: 32kHz 44.1kHz 48kHz
- Audio A/D sampling: 24 Bit
- Frequency response: 10～20kHz
- Gain mismatch between channels: 0.1dB
- Gain error: ±5%
- Gain drift: 100 ppm/°C
- Amplitude-frequency characteristic: ≤±0.5 dB
- Audio input/output impedance: 600 Ω balance
- Audio maximum input/output voltage: 0~2V
LED indicators:
- PWR: ON upon power in.Off upon powered off
- FIBER:Off when fiber optical signal is blocked or excessive attenuation. On when fiber signal is received properly
General Spec:
- Operating temperature :-20 to 70°C
- Storage temperature: -40 to 80°C
- Relative humidity: 5 to 95%（non-condensing）
- Working life(MTBF): ＞100,000hours
- Installation: stand-alone.
- Support wide range working Voltage: AC100-240V 50/60Hz, DC5V
- Power plug：US/EU/UK/AU standard is optional.
- Dimension: 104mm(L)×104mm(W)×28mm(H).
- Weight: 0.8Kg/pair
Package include:
- 1x Unbalanced Audio Fiber Transmitter
- 1x Unbalanced Audio Fiber Receiver
- 2x Power supply adapter
- 1x FREE 3M Fiber patch cord
- 1x Manual.
