2 Analog Video with 2 TTL data over Fiber optic Converters LC Optical Transceiver Module TX 1310 & RX 1550nm High Speed TTL Up 460Kbps
Product description: This device include a sky end (TX) and a ground end (RX), Developed for drone...
Vendor:
Primeda-telecom
SKU:
PMD-2V1D-2TTL-LC-20Km-N
Availability:
In Stock
Product Type:
Analog video fiber converter
- $52.00
$69.00- $52.00
- Unit price
- per
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Product description:
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 2 channel of CVBS analog video and 2 TTL level signal over an optical fiber cable for long distance transmission.
High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective.
Support custom made, 1080P/960P/CVBS Analog video is optional, Multichannel Video/TTL/RS232/RS485 is optional. OEM factory, Fast production,High quality product, Competitive price, Contact us if needed.

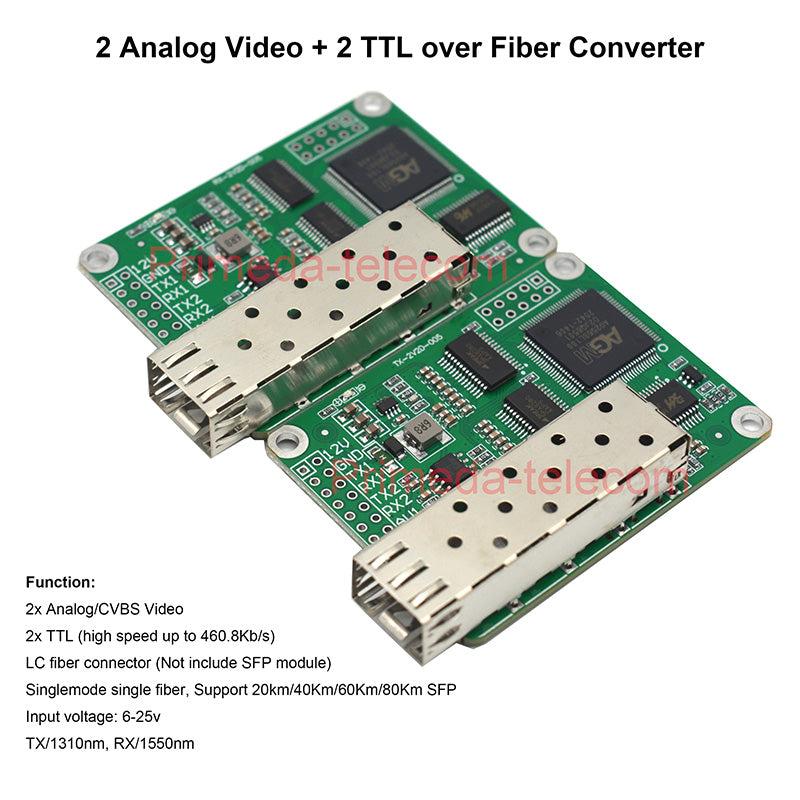

Function:
2x Analog/CVBS Video
2x TTL (high speed up to 460.8Kb/s)
LC fiber connector (Not include SFP module)
Singlemode single fiber, Support 20km/40Km/60Km/80Km SFP
Input voltage: 6-25v
TX/1310nm, RX/1550nm
Interface : RX/TX/AV/VCC/GND
RX/TX: connect remote control.
AV: video.
VCC: Power supply DV5-26V
GND:ground wire
Feature:
1. This video over fiber system is used to send 2 channel of cvbs analog Video signals with 2 TTL signal to remote display devices by using single LC-LC Fiber Optic cable.
2. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
3. Long Transmission distance, singlemode fiber 0~80Km, Support 20km/40Km/60Km/80Km SFP, (Note: our product Not include SFP module)
4. Support camera type: cvbs analog camera.Video format compatible for PAL, NTSC, SECAM
5. Mean Time between failures, More than 100,000 hours
6. Plug and play, no need to set up.
Application environment
1.Broadcasting and television
2.Surveillance system
3.Distance education,support remote interactive teaching and real-time video communication
4.Industrial control and More
Optical index:
Optical Interface : LC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatible with multimode fiber.
Transmission distance: single-mode fiber 0-80KM, Support 20km/40Km/60Km/80Km SFP
Video Index:
Video : 2 channel
Video Interface: BNC
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
Two TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Product weight: about 25g/pcs
Package Include:
1 x TX/1310nm
1 x RX/1550nm
