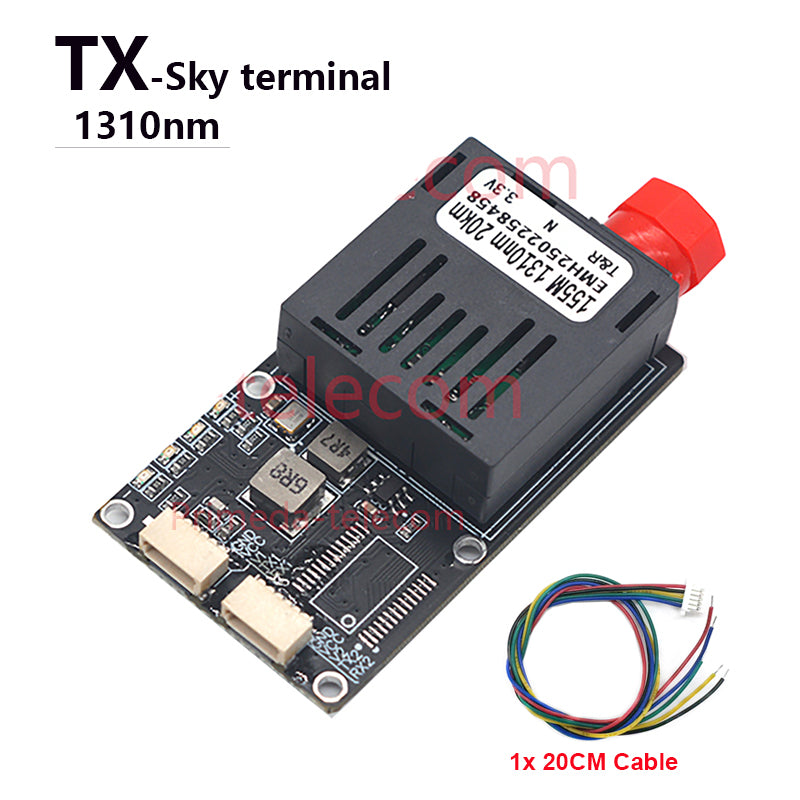

Model: 1 Sky end TX/1310nm
Subtotal: $29.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

2 Analog video 2 TTL over Fiber Converter Optical Transceiver FC Singlemode 20Km UART TTL SBUS to Optic Controller TX RX A pair

2 Analog video 2 TTL over Fiber Converter Optical Transceiver FC Singlemode 20Km UART TTL SBUS to Optic Controller TX RX A pair

$36.00 $29.00

2 Analog video 2 TTL over Fiber Converter Optical Transceiver FC Singlemode 20Km UART TTL SBUS to Optic Controller TX RX A pair

$36.00 $29.00
Model: 1 Sky end TX/1310nm

Description:

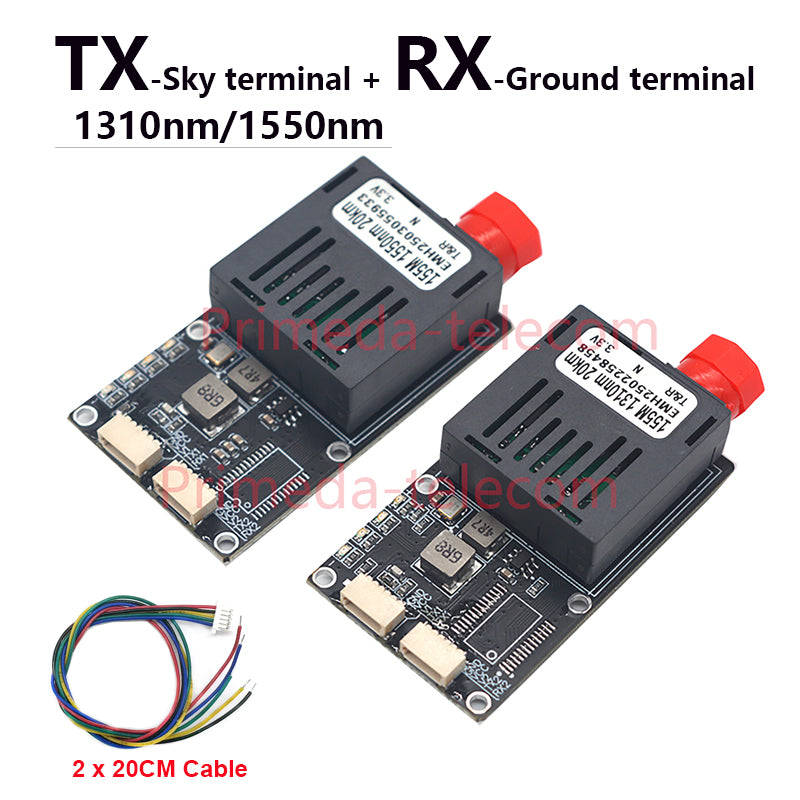

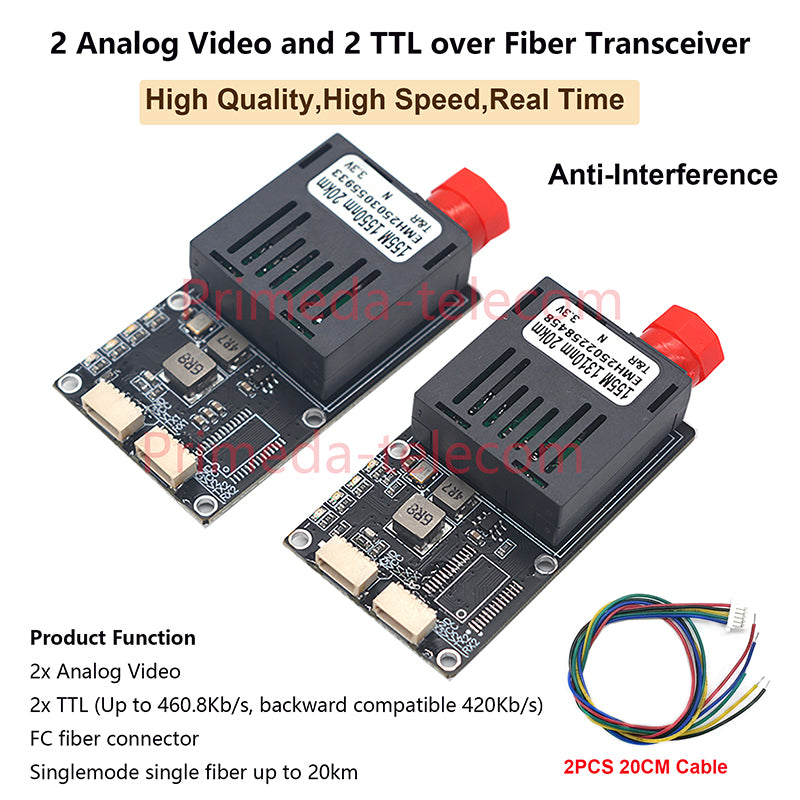

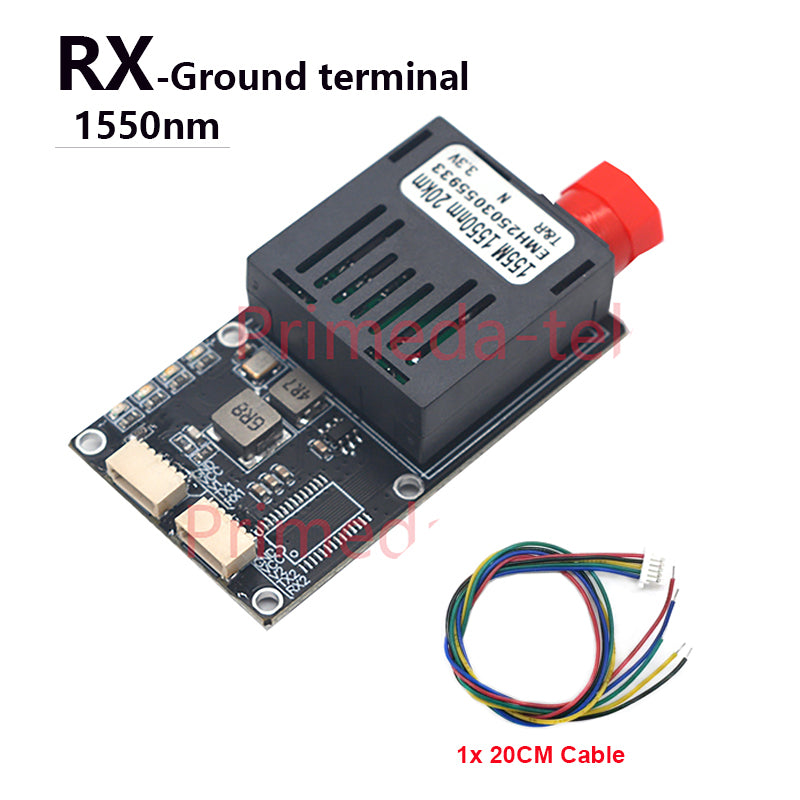

This optical transceiver include a sky end (TX/1310nm) and a ground end (RX/1550nm), it is developed for drone signal transmission system with 2 analog video and 2 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, Anti-interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

It is safe and reliable, stable in performance, light in weight and cost-effective.

It can be customized according to buyer's special requirements, welcome to contact us .

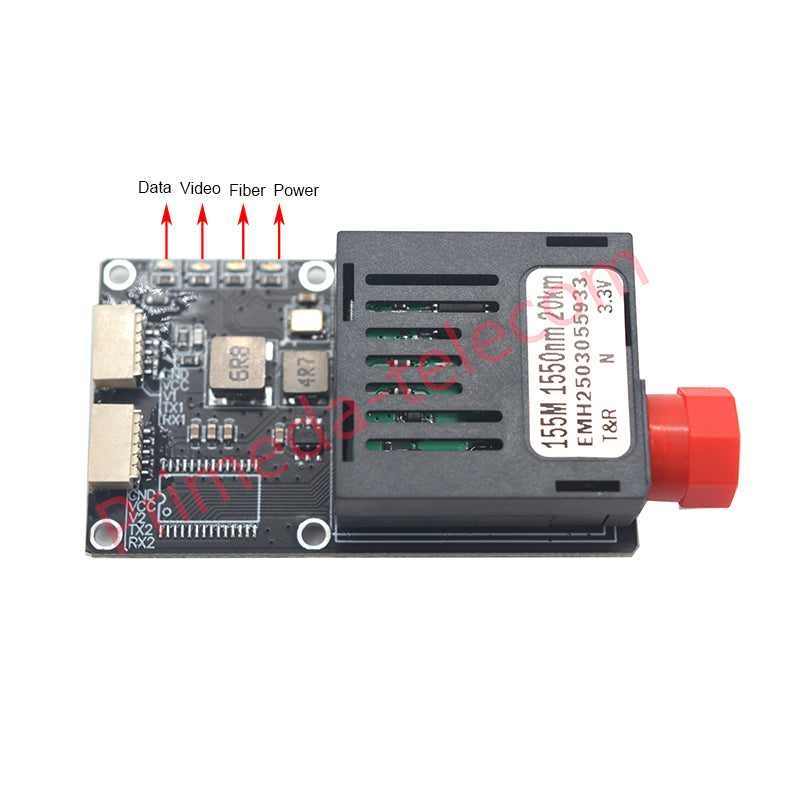

Connection Interface definition

GND: Grounding wire

VCC: Power Supply

AV1: Video1

AV2: Video2

TX: TTL output

RX: TTL input





Product specification:

Video

Video interface: PIN

Video input/output impedance 75? (unbalanced)

Video bandwidth 8MHz

Compatible with PAL, NTSC, SECAM video formats

Applicable cameras: analog cameras and CVBS cameras

Video voltage 1VP-P

Video signal-to-noise ratio≥70dB





Serial port

Can be customized according to requirements, UART, TTL SUBS and other serial port signals

Baud rate: up to 460Kbps, backward compatible with 115.2Kbps and more .(Baud rate can be customized upon request



Optical fiber

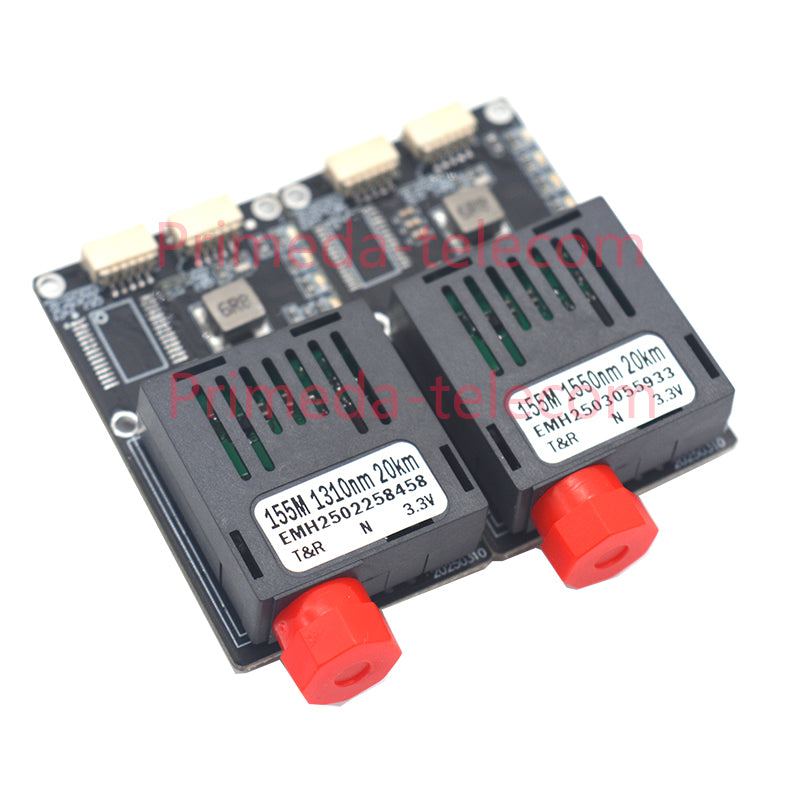

Optical fiber interface: FC/UPC

Optical fiber wavelength: 1310nm/1550nm

Transmission distance: 0-20km



Other specification:

Product Size54mm*29mm*14mm

Weight: Sky end -12g, Ground end -12g

Power supply: 5.5v-26v: (2S-6S battery)

Power consumption: less than or equal to 5W

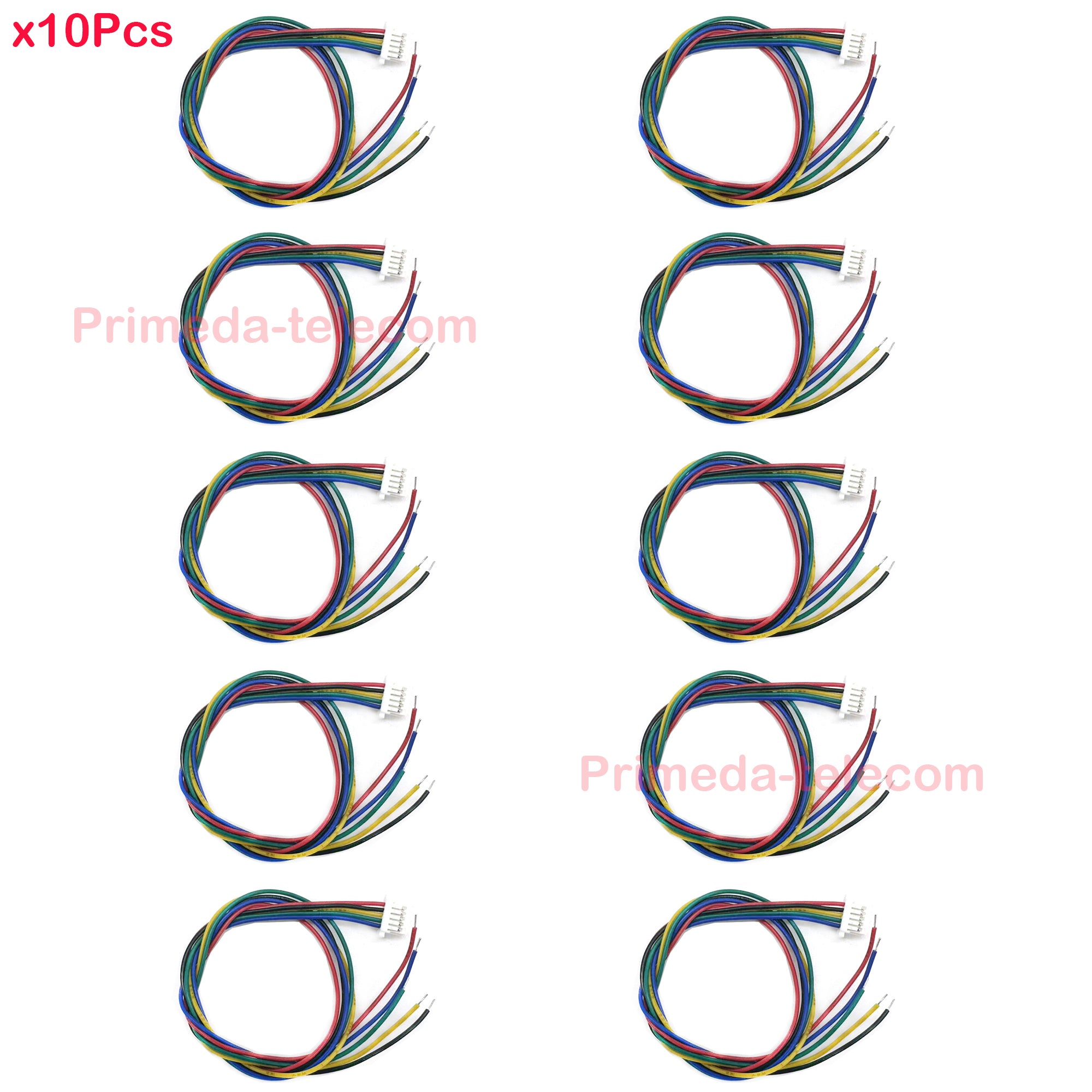

Communication interface: SH1.0mm-5Pin: CRSF interface/CVBS video port

Fiber optic interface: FC:

Communication distance: up to 20km by singlemode fiber cable
