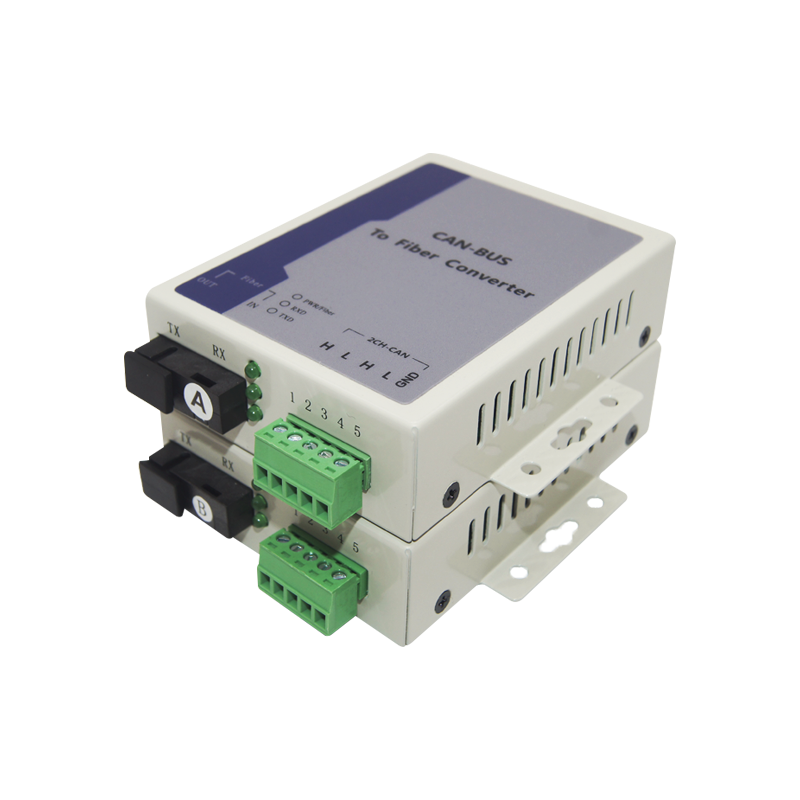

CAN bus optical transceiver CAN bus signal over fiber optic converter CAN to fiber optic extender,SC singlemode fiber up 20Km

Product Description:

This CAN bus data optical transceiver is a point-to-point fiber optic interface communication. The fire control host networking CAN protocol optical transceiver has a built-in microprocessor that stores and forwards working modes.

The CAN protocol supports standard frame and extended frame formats, and supports high-level protocols such as CANbus/CanOpen/DeviceNet The fire host networking CAN protocol optical transceiver supports 15 standard communication baud rates recommended by CiA and user-defined baud rates, with a speed range of 5Kbps to 800Kbps, ensuring strong anti-interference ability of the converter and improving the reliability of the system in harsh environments. The product adopts standard SC fiber optic interface (can be customized according to usage requirements, supports FC and ST interfaces); Fire control host networking CAN protocol optical transceiver fiber optic communication distance up to Single-mode 20Km, multi-mode 2KM is optional.

Connection method
CAN signal collector - optical transceiver A - fiber optic - optical transceiver B (one A and one B can be paired together) - CAN controller
interface
1 channel version, connected to the left 1H 2L, other two pin is empty
2-channel version, connection 1H, 2L, 3H, 4L.

Specification:

Number of ports: 1 CAN bus can achieve simultaneous access and use of one bus

The port protocol CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification

Baud rate CAN bus communication baud rate can be configured between 0Kbps~500kbps

The electrical isolation CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V

Quantity flow conversion data flow: ≤ 8000 frames per second (up to the theoretical limit of CAN bus throughput)

Power supply DC-5V voltage input

Fiber wavelength: multimode 850nm, single-mode 1310nm

The transmission distance of the RS-485 port is 200 meters

Optical port transmission distance: 550 meters for multimode and 20-100 kilometers for single-mode (customization required)

Interface protection: 600W surge protection, 1500V electrostatic protection

Electrical interface form 2-position terminal block

Multi mode optional SC interface for optical port form, FC/SC/ST interface for single-mode

Connection method: CAN signal collector - optical transceiver A - fiber optic - optical transceiver B (in no particular order, one A and one B can be paired together) - CAN controller

Wiring port 1H 2L GND ground wire

The PWR/Fibdr light flashes when powered on and remains on after connecting the fiber optic cable

TXD light has data input flashing

RXR light has data output flashing

General Spec:

Working temperature: -20°C ~ +70°C.

Storage temperature：-40 to 80°C

Relative humidity:5 to 95% (non-condensing)

Dimension: 110 mmx70mmx25 mm（LxWxH）

Support wide range working Voltage: AC100-240V 50/60Hz, DC5V

Working life: more than 1,0,000,000 hours

Power plug：US/EU/UK/AU standard is optional

Package include:

1x CAN bus over Fiber Transmitter

1x CAN bus over Audio Fiber Receiver

2x Power supply adapter

1x Manual.
